1520-2

Keystone Electronics Corp.

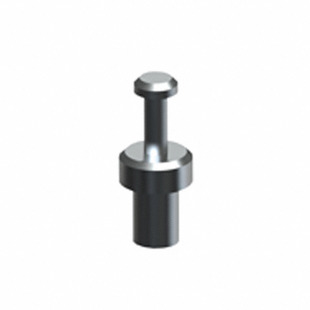

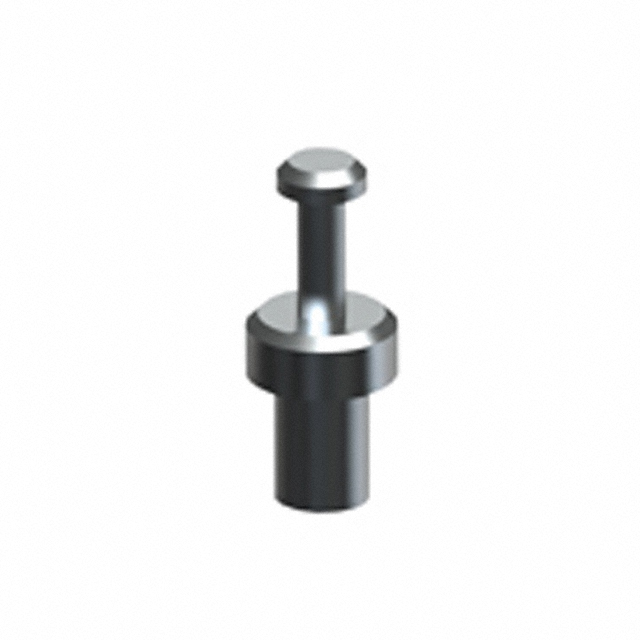

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1520-2
Manufacturer/Brand:	Keystone Electronics Corp.
Product description	TERM TURRET SINGLE L=4.75MM TIN
Datasheets:	1520-2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	195002 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 195002 pcs

Reference Price (In US Dollars)

1 pcs: $0.181

10 pcs: $0.121

50 pcs: $0.088

100 pcs: $0.085

250 pcs: $0.076

1000 pcs: $0.061

2500 pcs: $0.055

5000 pcs: $0.052

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.181

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1520-2

Part Number	1520-2	Manufacturer	Keystone Electronics Corp.
Description	TERM TURRET SINGLE L=4.75MM TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	195002 pcs	Data sheet	1520-2.pdf
Termination	Staking Flare	Terminal Type	Single End
Staking Side OD	0.078" (1.98mm)	Staking Side ID	-
Series	-	Other Names	1520-2K 1520-2K-ND 36-1520-2 KEY1051 KEY1051-ND
Number of Turrets	Single	Mounting Type	Through Hole
Mounting Hole Diameter	0.082" (2.08mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Insulation	-	Manufacturer Standard Lead Time	6 Weeks
Length - Overall	0.296" (7.52mm)	Length - Below Flange	0.109" (2.77mm)
Length - Above Board	0.187" (4.75mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Color	-	Insulation	Non-Insulated
Flange Diameter	0.125" (3.18mm)	Diameter - Turret Head	0.075" (1.91mm)
Detailed Description	Terminal Turret Connector Single End 0.187" (4.75mm) Tin	Contact Material	Brass
Contact Finish Thickness	-	Contact Finish	Tin
Board Thickness	0.062" (1.57mm)
