Keystone Electronics Corp.

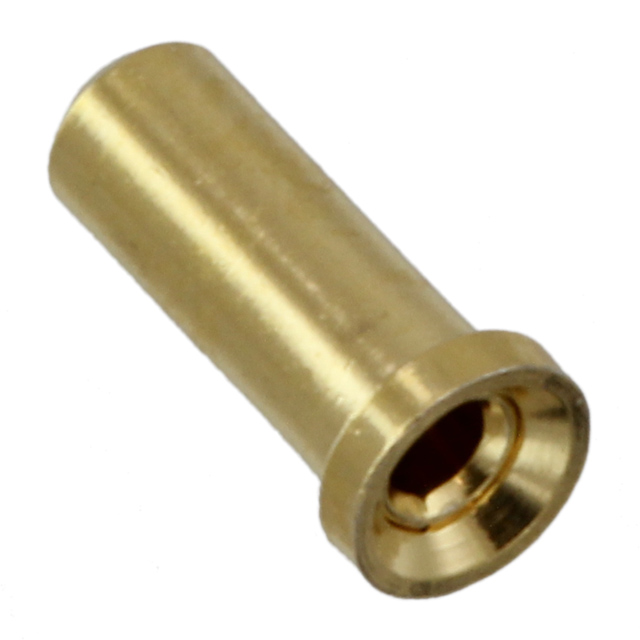

| Part Number | 1413 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PIN RCPT .015-.025 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 152435 pcs | Data sheet | 1.1413.pdf2.1413.pdf |
| Termination | Solder | Tail Type | No Tail |
| Tail Diameter | - | Socket Depth | 0.142" (3.61mm) |
| Series | - | Pin Hole Diameter | - |
| Packaging | Bulk | Other Names | 1413K 1413K-ND 36-1413 KEY1018 KEY1018-ND |
| Operating Temperature | - | Mounting Hole Diameter | 0.057" (1.45mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Overall | 0.161" (4.09mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Force | - | Flange Diameter | 0.072" (1.83mm) |
| Features | - | Detailed Description | Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) No Tail Solder |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | - |
| Accepts Square Pin Size | - | Accepts Pin Diameter | 0.015" ~ 0.025" (0.38mm ~ 0.64mm) |
