Keystone Electronics Corp.

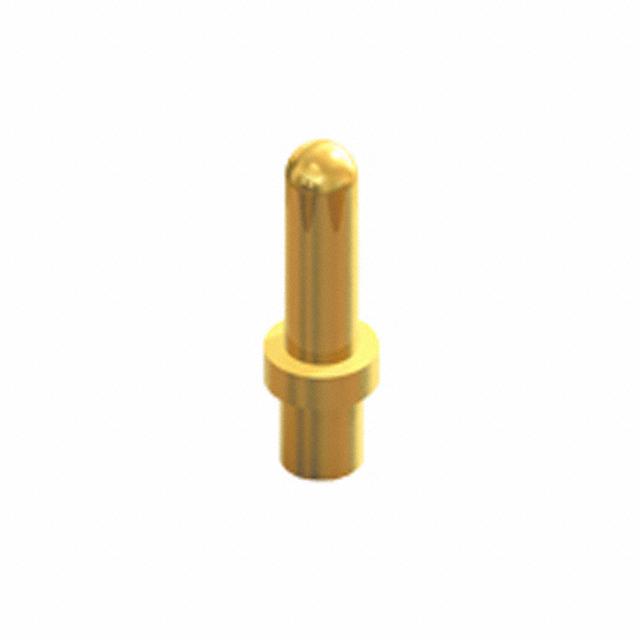

| Part Number | 1377-2 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.080DIA TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 260926 pcs | Data sheet | 1.1377-2.pdf2.1377-2.pdf |
| Termination | Swage | Terminal Type | PC Pin |
| Terminal Style | Single End | Series | - |
| Pin Size - Below Flange | - | Pin Size - Above Flange | 0.080" (2.03mm) Dia |
| Packaging | Bulk | Other Names | 1377-2K 1377-2K-ND 13772 36-1377-2 |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.094" (2.39mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.405" (10.29mm) |
| Length - Below Flange | 0.105" (2.67mm) | Length - Above Flange | 0.258" (6.55mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.125" (3.18mm) |
| Detailed Description | PC Pin Terminal Connector Through Hole Tin 0.080" (2.03mm) Dia | Contact Material | Brass |
| Contact Finish Thickness | 200.0µin (5.08µm) | Contact Finish | Tin |
| Board Thickness | 0.062" (1.57mm) |
