Keystone Electronics Corp.

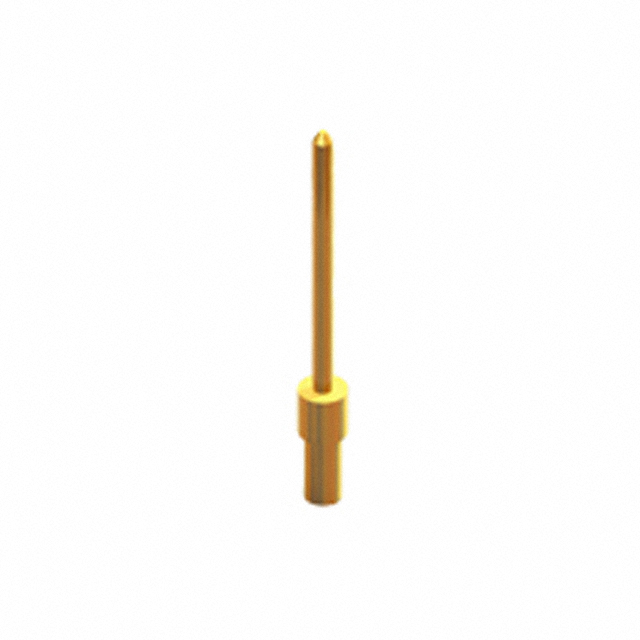

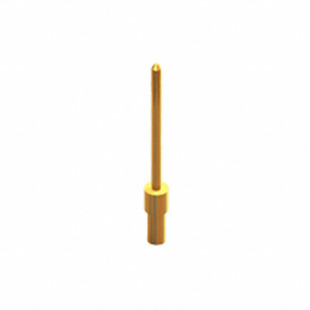

| Part Number | 1370-2 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.025DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 491410 pcs | Data sheet | 1.1370-2.pdf2.1370-2.pdf |
| Termination | Swage | Terminal Type | PC Pin |
| Terminal Style | Single End | Series | - |
| Pin Size - Below Flange | - | Pin Size - Above Flange | 0.025" (0.64mm) Dia |
| Packaging | Bulk | Other Names | 1370-2K 1370-2K-ND 13702 36-1370-2 |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.052" (1.32mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.531" (13.50mm) |
| Length - Below Flange | 0.094" (2.39mm) | Length - Above Flange | 0.375" (9.53mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.062" (1.57mm) |
| Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.025" (0.64mm) Dia | Contact Material | Brass |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Board Thickness | 0.062" (1.57mm) |
