Keystone Electronics Corp.

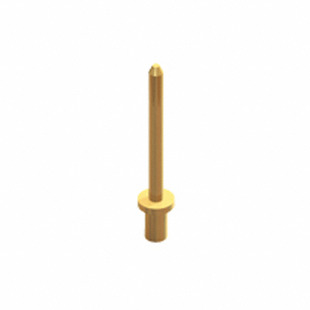

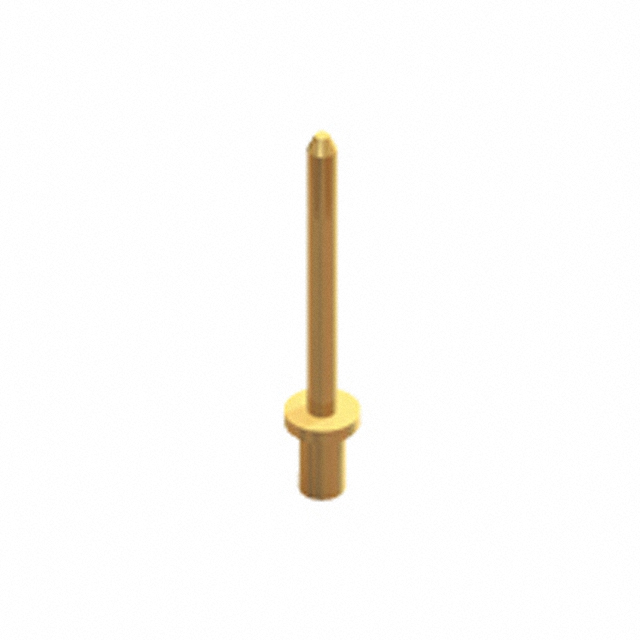

| Part Number | 1366-1 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.020DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 306168 pcs | Data sheet | 1.1366-1.pdf2.1366-1.pdf |
| Termination | Swage | Terminal Type | PC Pin |
| Terminal Style | Single End | Series | - |
| Pin Size - Below Flange | - | Pin Size - Above Flange | 0.020" (0.51mm) Dia |
| Packaging | Bulk | Other Names | 1366-1-ND 36-1366-1 Q6006515 |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.035" (0.89mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.276" (7.01mm) |
| Length - Below Flange | 0.051" (1.30mm) | Length - Above Flange | 0.215" (5.46mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.050" (1.27mm) |
| Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia | Contact Material | Brass |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Board Thickness | 0.032" (0.81mm) |
