Keystone Electronics Corp.

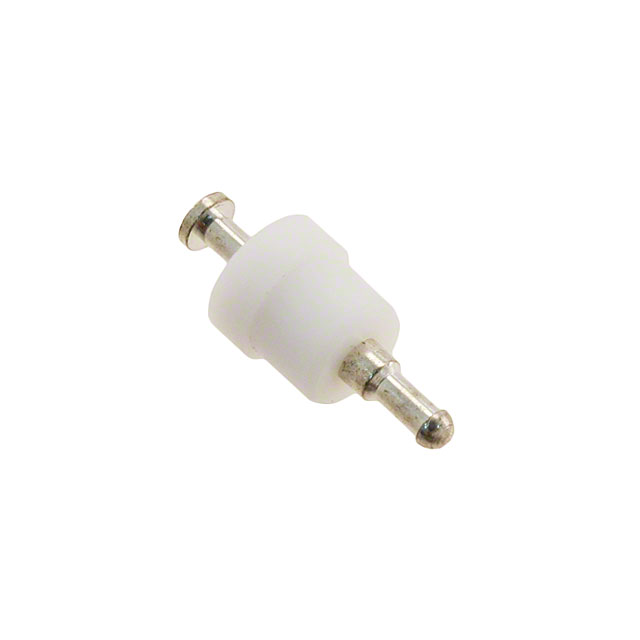

| Part Number | 11251 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | TERM TURRET DOUBLE L=4.95MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 98719 pcs | Data sheet | 1.11251.pdf2.11251.pdf |
| Termination | Press-Fit | Terminal Type | Double End |
| Staking Side OD | - | Staking Side ID | - |
| Series | - | Other Names | 11251K 11251K-ND 36-11251 |
| Number of Turrets | Double | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.158" (4.01mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polytetrafluoroethylene (PTFE) | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Overall | 0.500" (12.70mm) | Length - Below Flange | 0.305" (7.75mm) |
| Length - Above Board | 0.195" (4.95mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | White | Insulation | Insulated |
| Flange Diameter | 0.200" (5.08mm) | Diameter - Turret Head | 0.090" (2.29mm) |
| Detailed Description | Terminal Turret Connector Double End 0.195" (4.95mm) Tin | Contact Material | Brass |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Board Thickness | 0.062" (1.57mm) |
