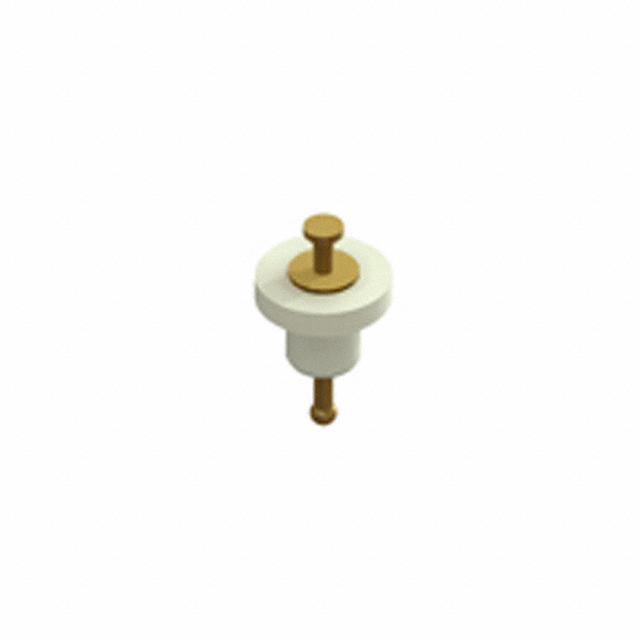

Keystone Electronics Corp.
| Part Number | 11250 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | TERM TURRET DOUBLE L=4.98MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 51704 pcs | Data sheet | 1.11250.pdf2.11250.pdf |
| Termination | Press-Fit | Terminal Type | Double End |
| Staking Side OD | - | Staking Side ID | - |
| Series | - | Other Names | 11250K 11250K-ND 36-11250 |
| Number of Turrets | Double | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.158" (4.01mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polytetrafluoroethylene (PTFE) | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Overall | 0.540" (13.72mm) | Length - Below Flange | 0.344" (8.74mm) |
| Length - Above Board | 0.196" (4.98mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | White | Insulation | Insulated |
| Flange Diameter | 0.312" (7.92mm) | Diameter - Turret Head | 0.093" (2.36mm) |
| Detailed Description | Terminal Turret Connector Double End 0.196" (4.98mm) Tin | Contact Material | Brass |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Board Thickness | 0.062" (1.57mm) |
