Keystone Electronics Corp.
| Part Number | 11217 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|

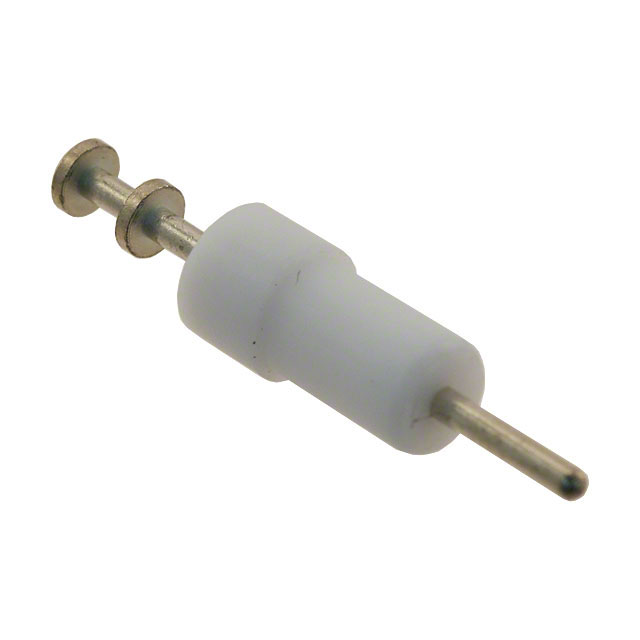

| Description | TERM TURRET PIN L=9.53MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53662 pcs | Data sheet | 1.11217.pdf2.11217.pdf |
| Termination | Press-Fit | Terminal Type | Double End, Pin |
| Staking Side OD | - | Staking Side ID | - |
| Series | - | Other Names | 11217K 11217K-ND 36-11217 |
| Number of Turrets | Double | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.136" (3.45mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polytetrafluoroethylene (PTFE) | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Overall | 0.836" (21.23mm) | Length - Below Flange | 0.230" (5.84mm) |
| Length - Above Board | 0.375" (9.53mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | White | Insulation | Insulated |
| Flange Diameter | 0.172" (4.37mm) | Diameter - Turret Head | 0.093" (2.36mm) |
| Detailed Description | Terminal Turret Connector Double End, Pin 0.375" (9.53mm) Tin | Contact Material | Brass |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Board Thickness | 0.062" (1.57mm) |
