SC-20-100

KEMET

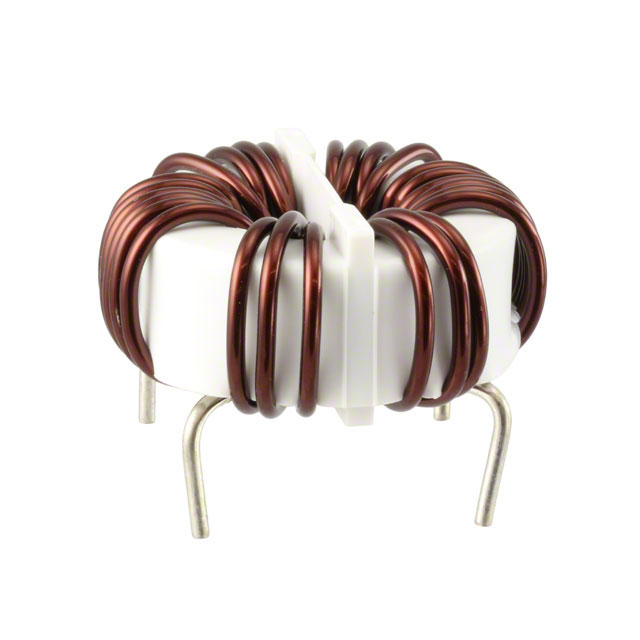

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SC-20-100
Manufacturer/Brand:	KEMET
Product description	COMMON MODE CHOKE 1MH 20A 2LN TH
Datasheets:	SC-20-100.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17713 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 17713 pcs

Reference Price (In US Dollars)

1 pcs: $2.182

10 pcs: $1.659

25 pcs: $1.615

50 pcs: $1.484

100 pcs: $1.397

250 pcs: $1.353

500 pcs: $1.31

1000 pcs: $1.266

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.182

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SC-20-100

Part Number	SC-20-100	Manufacturer	KEMET
Description	COMMON MODE CHOKE 1MH 20A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17713 pcs	Data sheet	SC-20-100.pdf
Voltage Rating - DC	250V	Voltage Rating - AC	250V
Size / Dimension	2.362" Dia (60.00mm)	Series	SC
Ratings	-	Packaging	Bulk
Package / Case	Horizontal, No Base, 4 PC Pin	Other Names	399-10618
Operating Temperature	-25°C ~ 105°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance @ Frequency	1mH @ 100kHz	Height (Max)	1.181" (30.00mm)
Filter Type	Power Line	Features	-
Detailed Description	1mH @ 100kHz 2 Line Common Mode Choke Through Hole 20A DCR 8 mOhm	DC Resistance (DCR) (Max)	8 mOhm
Current Rating (Max)	20A	Approvals	-
