Part Number | EEV107M050A9MAA | Manufacturer | KEMET |
---|---|---|---|
Description | CAP ALUM 100UF 20% 50V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 243739 pcs | Data sheet | EEV107M050A9MAA.pdf |
Voltage - Rated | 50V | Tolerance | ±20% |
Surface Mount Land Size | 0.327" L x 0.394" W (8.30mm x 10.00mm) | Size / Dimension | 0.315" Dia (8.00mm) |
Series | EEV | Ripple Current @ Low Frequency | 210mA @ 120Hz |
Ripple Current @ High Frequency | 300mA @ 100kHz | Ratings | - |
Polarization | Polar | Packaging | Tape & Reel (TR) |
Package / Case | Radial, Can - SMD | Other Names | 399-6701-2 EV107M050A9MAAKPLP |
Operating Temperature | -55°C ~ 105°C | Mounting Type | Surface Mount |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 20 Weeks |
Lifetime @ Temp. | 2000 Hrs @ 105°C | Lead Spacing | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Impedance | 500 mOhms |
Height - Seated (Max) | 0.413" (10.50mm) | ESR (Equivalent Series Resistance) | - |

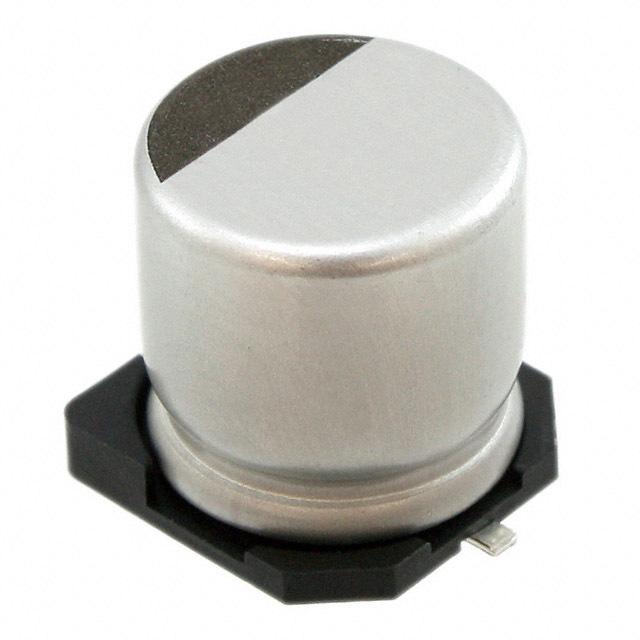

Detailed Description | 100µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C | Capacitance | 100µF |
Applications | General Purpose |
