C20AZGR5220AASK

KEMETKEMET

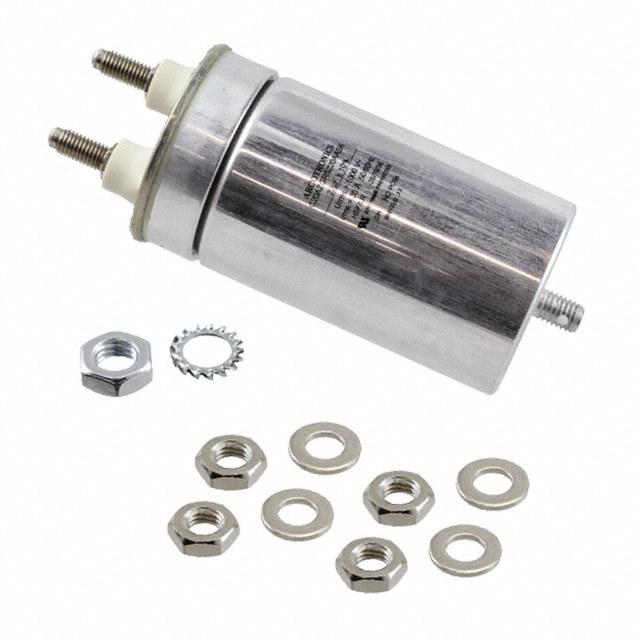

C20AZGR5220AASK Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: C20AZGR5220AASK
Manufacturer/Brand: KEMET
Product description CAP FILM 22UF 10% 2.3KVDC SCREW
Datasheets: 1.C20AZGR5220AASK.pdf2.C20AZGR5220AASK.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 714 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 714 pcs
Reference Price (In US Dollars)
1 pcs
$46.43
10 pcs
$44.03
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$46.43

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of C20AZGR5220AASK

Part Number C20AZGR5220AASK Manufacturer KEMET
Description CAP FILM 22UF 10% 2.3KVDC SCREW Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 714 pcs Data sheet 1.C20AZGR5220AASK.pdf2.C20AZGR5220AASK.pdf
Voltage Rating - DC 2300V (2.3kV) Voltage Rating - AC 1000V (1kV)
Tolerance ±10% Termination Threaded, Male
Size / Dimension 2.953" Dia (75.00mm) Series C20A
Ratings - Packaging Bulk
Package / Case Radial, Can Other Names 20AZGR5220AASK
399-14239
Operating Temperature -25°C ~ 70°C Mounting Type Chassis, Stud Mount
Manufacturer Standard Lead Time 23 Weeks Lead Spacing 1.378" (35.00mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height - Seated (Max) 5.866" (149.00mm)
Features Long Life ESR (Equivalent Series Resistance) 2 mOhms
Dielectric Material Polypropylene (PP), Metallized Detailed Description 22µF Film Capacitor 1000V (1kV) 2300V (2.3kV) Polypropylene (PP), Metallized Radial, Can
Capacitance 22µF Applications 3 Phase, Power Factor Correction (PFC); Commutation; EMI, RFI Suppression
