JAE Electronics

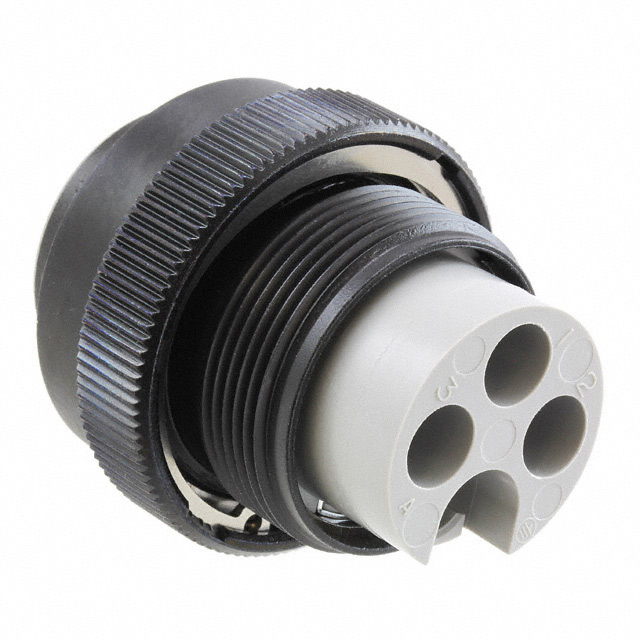

| Part Number | JL05-6A22-22SC-F0-R | Manufacturer | JAE Electronics |
|---|---|---|---|
| Description | CONN PLUG 4POS CRIMP W/O SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3096 pcs | Data sheet | 1.JL05-6A22-22SC-F0-R.pdf2.JL05-6A22-22SC-F0-R.pdf3.JL05-6A22-22SC-F0-R.pdf |
| Wire Gauge or Range - AWG | 8 | Usage | Unshielded |
| Type Attributes | IP67 - Dust Tight, Waterproof | Type | For Female Sockets |
| Stacking Direction | Crimp | Shield Termination | Circular |
| Shell Material, Finish | - | Shell Finish | Aluminum Alloy |
| Series | JL05 | RoHS Status | Bulk |
| Plug/Mating Plug Diameter | Black | Other Names | 670-2029 JL05-6A22-22SC-FO-R JL056A2222SCF0R |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 4 (3 + PE) |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Manufacturer Part Number | JL05-6A22-22SC-F0-R |
| Large Diameter Supplied | 22-22 | Insert Material | Aluminum Alloy, Zinc |
| Includes | - | Features | Coupling Nut |
| Expanded Description | 4 (3 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut | Description | CONN PLUG 4POS CRIMP W/O SOCKET |
| Current - Max/Contact | Bayonet Lock | Coupling Nut Material, Plating | 1.661" (42.20mm) |
| Coupling Nut Diameter | Zinc | Contact Shape | Synthetic Resin |
| Contact Material | N (Normal) | Connector Type | Plug Housing |
| Body Material | - |
