JAE Electronics

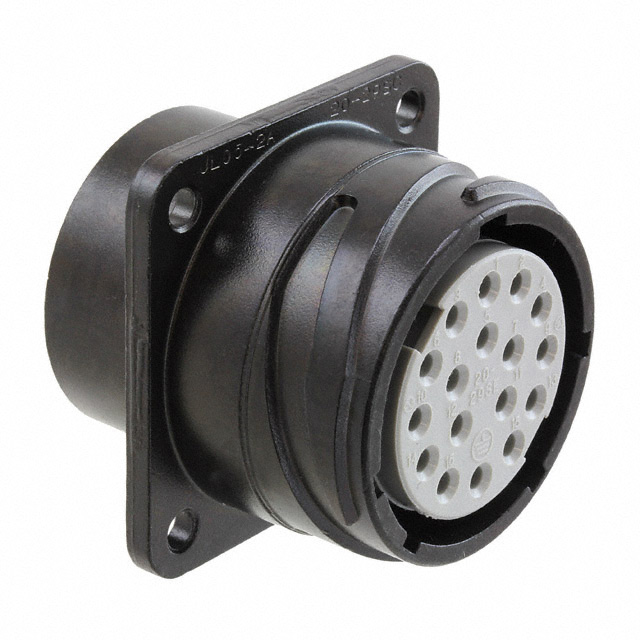

| Part Number | JL05-2A20-29SC-F0-R | Manufacturer | JAE Electronics |
|---|---|---|---|
| Description | CONN RCPT 17POS CRIMP W/O SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7634 pcs | Data sheet | 1.JL05-2A20-29SC-F0-R.pdf2.JL05-2A20-29SC-F0-R.pdf3.JL05-2A20-29SC-F0-R.pdf |
| Wire Gauge or Range - AWG | 16 | Usage | Unshielded |
| Type Attributes | IP67 - Dust Tight, Waterproof | Type | For Female Sockets |
| Stacking Direction | Crimp | Shield Termination | Circular |
| Shell Material, Finish | - | Shell Finish | Aluminum Alloy |
| Series | JL05 | RoHS Status | Bulk |
| Plug/Mating Plug Diameter | Black | Other Names | 670-2017 JL05-2A20-29SC-FO-R JL052A2029SCF0R |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 17 (16 + PE) |
| Note | Contacts Not Included | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Manufacturer Part Number | JL05-2A20-29SC-F0-R |
| Large Diameter Supplied | 20-29 | Insert Material | - |
| Includes | - | Features | - |
| Expanded Description | 17 (16 + PE) Position Circular Connector Receptacle Housing Panel Mount | Description | CONN RCPT 17POS CRIMP W/O SOCKET |
| Current - Max/Contact | Bayonet Lock | Coupling Nut Material, Plating | - |
| Coupling Nut Diameter | Zinc | Contact Shape | Synthetic Resin |
| Contact Material | N (Normal) | Connector Type | Receptacle Housing |
| Body Material | Flange |
