SM13B-ZESS-TB(LF)(SN)

JST

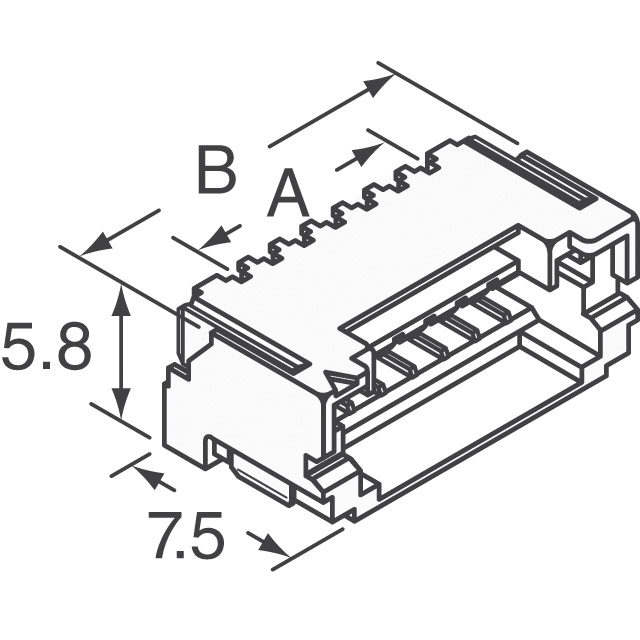

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SM13B-ZESS-TB(LF)(SN)
Manufacturer/Brand:	JST
Product description	CONN HEADER R/A SMD 13POS ZE
Datasheets:	SM13B-ZESS-TB(LF)(SN).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	164349 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 164349 pcs

Reference Price (In US Dollars)

1000 pcs: $0.235

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.235

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SM13B-ZESS-TB(LF)(SN)

Part Number	SM13B-ZESS-TB(LF)(SN)	Manufacturer	JST
Description	CONN HEADER R/A SMD 13POS ZE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	164349 pcs	Data sheet	SM13B-ZESS-TB(LF)(SN).pdf
Voltage Rating	100V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	ZE	Row Spacing - Mating	-
Pitch - Mating	0.059" (1.50mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	455-2406-2 455-2406-2-ND SM13B-ZESS-TB (LF)(SN) SM13B-ZESS-TB(LF)(SN)-
Operating Temperature	-25°C ~ 85°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	13
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.228" (5.80mm)
Insulation Color	Natural	Ingress Protection	-
Features	Solder Retention	Fastening Type	Locking Ramp
Detailed Description	Connector Header Surface Mount, Right Angle 13 position 0.059" (1.50mm)	Current Rating	2A
Contact Type	Outer Shroud Contact	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
