SM05B-ZESS-TB(LF)(SN)

JST

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SM05B-ZESS-TB(LF)(SN)
Manufacturer/Brand:	JST

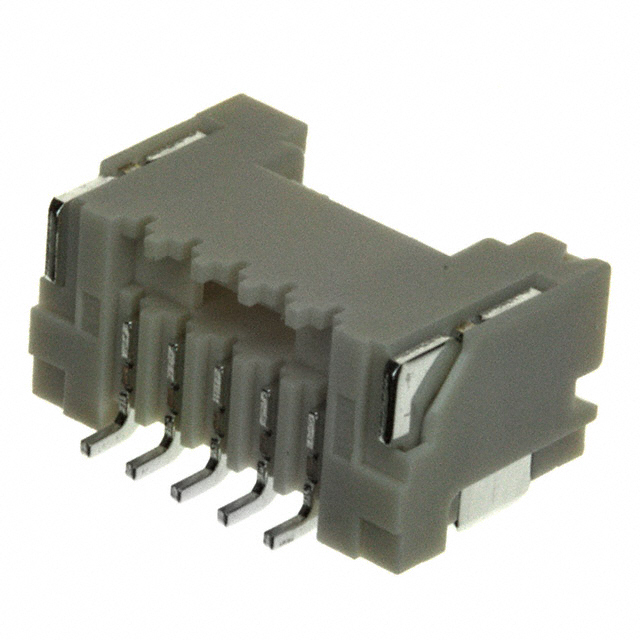

Product description	CONN HEADER R/A SMD 5POS ZE
Datasheets:	1.SM05B-ZESS-TB(LF)(SN).pdf 2.SM05B-ZESS-TB(LF)(SN).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	268242 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 268242 pcs

Reference Price (In US Dollars)

1000 pcs: $0.133

2000 pcs: $0.129

3000 pcs: $0.121

5000 pcs: $0.117

10000 pcs: $0.109

25000 pcs: $0.105

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.133

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SM05B-ZESS-TB(LF)(SN)

Part Number	SM05B-ZESS-TB(LF)(SN)	Manufacturer	JST
Description	CONN HEADER R/A SMD 5POS ZE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	268242 pcs	Data sheet	1.SM05B-ZESS-TB(LF)(SN).pdf 2.SM05B-ZESS-TB(LF)(SN).pdf
Voltage Rating	100V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	ZE	Row Spacing - Mating	-
Pitch - Mating	0.059" (1.50mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	455-2398-2 SM05B-ZESS-TB (LF)(SN) SM05BZESSTBLFSN
Operating Temperature	-25°C ~ 85°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.228" (5.80mm)
Insulation Color	Natural	Ingress Protection	-
Features	Solder Retention	Fastening Type	Locking Ramp
Detailed Description	Connector Header Surface Mount, Right Angle 5 position 0.059" (1.50mm)	Current Rating	2A
Contact Type	Outer Shroud Contact	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
