SM03B-GHS-TB(LF)(SN)

JST

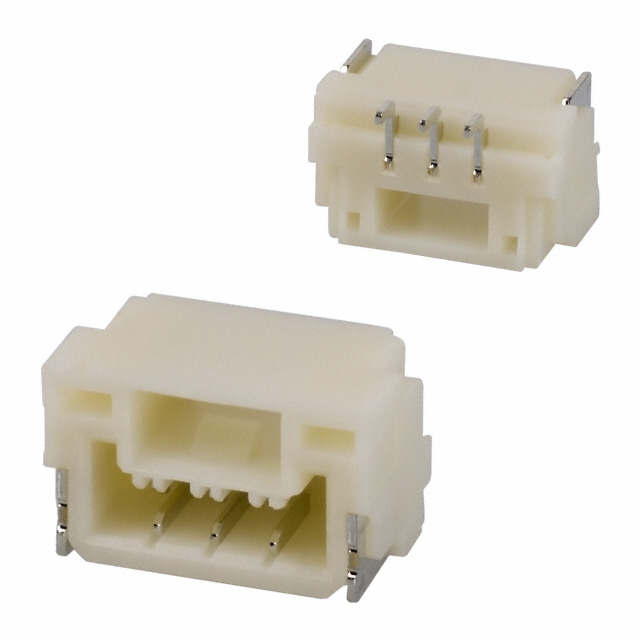

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SM03B-GHS-TB(LF)(SN)
Manufacturer/Brand:	JST
Product description	CONN HEADER GH SIDE 3POS 1.25MM
Datasheets:	SM03B-GHS-TB(LF)(SN).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	466089 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 466089 pcs

Reference Price (In US Dollars)

2500 pcs: $0.07

5000 pcs: $0.066

12500 pcs: $0.059

25000 pcs: $0.058

62500 pcs: $0.057

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.07

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SM03B-GHS-TB(LF)(SN)

Part Number	SM03B-GHS-TB(LF)(SN)	Manufacturer	JST
Description	CONN HEADER GH SIDE 3POS 1.25MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	466089 pcs	Data sheet	SM03B-GHS-TB(LF)(SN).pdf
Voltage Rating	50V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	GH	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	455-1565-2 SM03B-GHS-TB(LF)(SN)- SM03B-GHS-TB(LF)(SN);- SM03BGHSTBLFSN
Operating Temperature	-25°C ~ 85°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA9T), Nylon 9T	Insulation Height	0.167" (4.25mm)
Insulation Color	Natural	Ingress Protection	-
Features	Solder Retention	Fastening Type	Locking Ramp
Detailed Description	Connector Header Surface Mount, Right Angle 3 position 0.049" (1.25mm)	Current Rating	1A
Contact Type	Outer Shroud Contact	Contact Shape	Rectangular
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
