JST

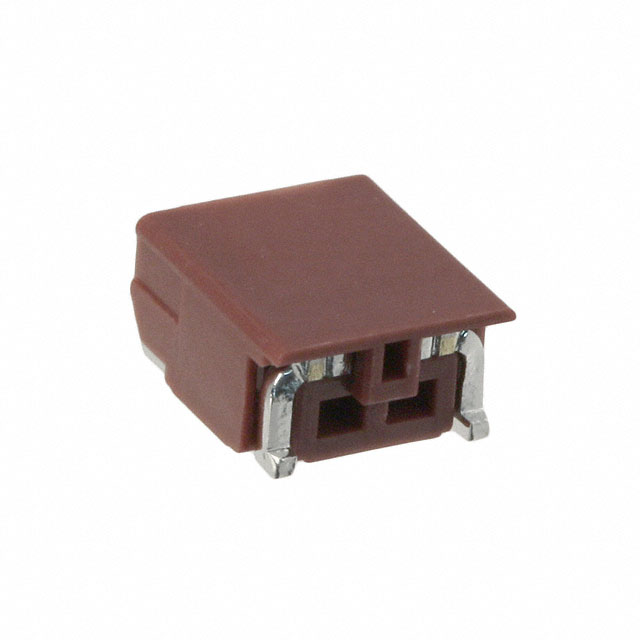

| Part Number | SM02B-SFHRS-TF(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HDR 2POS 1.8MM R/A RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 147370 pcs | Data sheet | SM02B-SFHRS-TF(LF)(SN).pdf |
| Voltage Rating | 350V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | SFH | Row Spacing - Mating | - |
| Pitch - Mating | 0.071" (1.80mm) | Packaging | Cut Tape (CT) |
| Overall Contact Length | - | Other Names | 455-2524-1 |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 24 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.118" (3.00mm) |
| Insulation Color | Red | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Surface Mount, Right Angle 2 position 0.071" (1.80mm) | Current Rating | 4A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
