JST

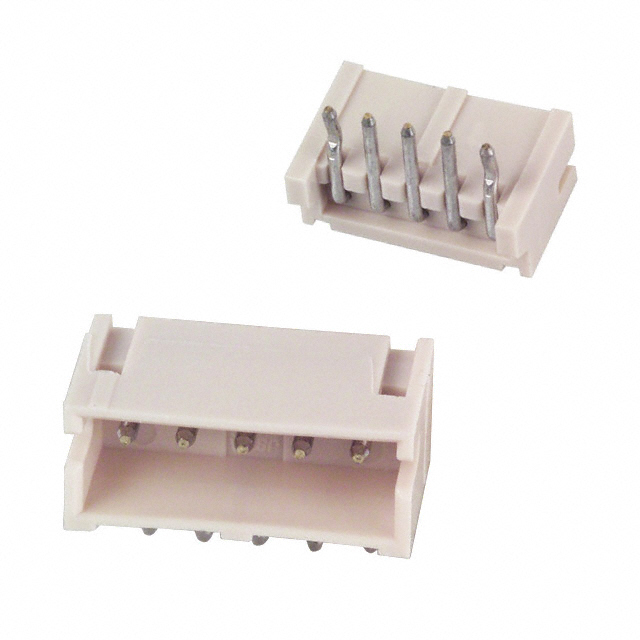

| Part Number | S5B-ZR | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER ZH SIDE 5POS 1.5MM | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5168 pcs | Data sheet | S5B-ZR.pdf |
| Voltage Rating | 50V | Termination | Press-Fit, Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | ZH | Row Spacing - Mating | - |
| Pitch - Mating | 0.059" (1.50mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 455-1246 |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 5 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.146" (3.70mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 5 position 0.059" (1.50mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.106" (2.69mm) | Contact Length - Mating | 0.094" (2.40mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header | Applications | - |
