S3B-XH-A-1(LF)(SN)

JST

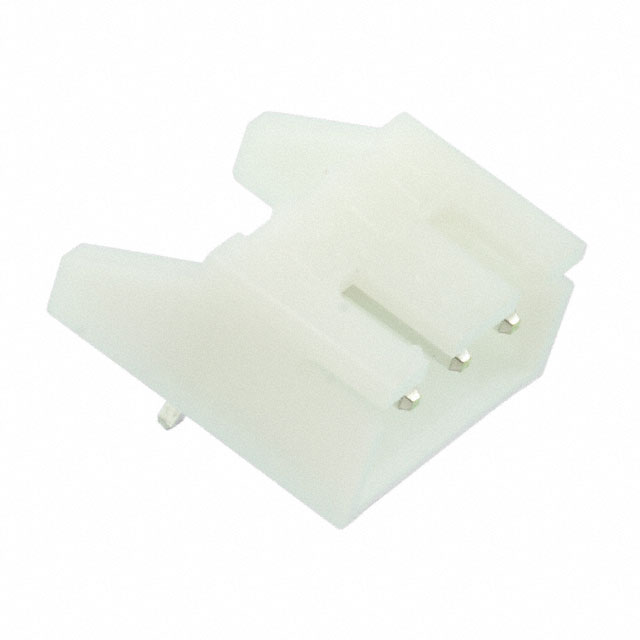

Image may be representation. See specifications for product details.

Product Overview

Part Number:	S3B-XH-A-1(LF)(SN)
Manufacturer/Brand:	JST
Product description	CONN HEADER XH SIDE 3POS 2.5MM
Datasheets:	S3B-XH-A-1(LF)(SN).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	382814 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 382814 pcs

Reference Price (In US Dollars)

1 pcs: $0.079

10 pcs: $0.075

100 pcs: $0.052

500 pcs: $0.044

1000 pcs: $0.036

5000 pcs: $0.032

10000 pcs: $0.029

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.079

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of S3B-XH-A-1(LF)(SN)

Part Number	S3B-XH-A-1(LF)(SN)	Manufacturer	JST
Description	CONN HEADER XH SIDE 3POS 2.5MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	382814 pcs	Data sheet	S3B-XH-A-1(LF)(SN).pdf
Voltage Rating	250V	Termination	Press-Fit, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	XH	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	455-2954 Q3215147C S3B-XH-A-1(LF)(SN)-ND S3B-XH-A1(LF)(SN) S3B-XH-A1(LF)(SN)-ND
Operating Temperature	-25°C ~ 85°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.240" (6.10mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole, Right Angle 3 position 0.098" (2.50mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.134" (3.40mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
