S04B-ZESK-2D(T)(LF)(SN)

JST

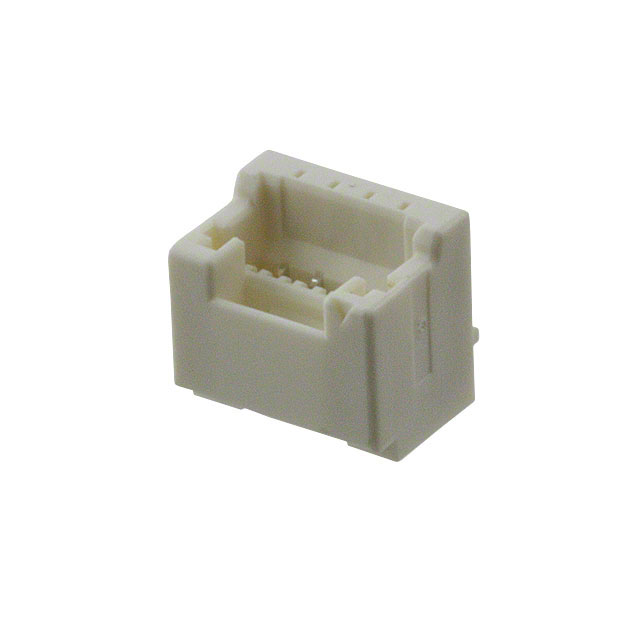

Image may be representation. See specifications for product details.

Product Overview

Part Number:	S04B-ZESK-2D(T)(LF)(SN)
Manufacturer/Brand:	JST
Product description	CONN HEADER 4POS 1.5MM T/H R/A
Datasheets:	S04B-ZESK-2D(T)(LF)(SN).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	128600 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 128600 pcs

Reference Price (In US Dollars)

1 pcs: $0.235

10 pcs: $0.221

100 pcs: $0.17

500 pcs: $0.148

1248 pcs: $0.122

6240 pcs: $0.107

11232 pcs: $0.10

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.235

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of S04B-ZESK-2D(T)(LF)(SN)

Part Number	S04B-ZESK-2D(T)(LF)(SN)	Manufacturer	JST
Description	CONN HEADER 4POS 1.5MM T/H R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	128600 pcs	Data sheet	S04B-ZESK-2D(T)(LF)(SN).pdf
Voltage Rating	100V	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	ZE	Row Spacing - Mating	-
Pitch - Mating	0.059" (1.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	455-2663 S04B-ZESK-2D(LF)(SN) S04BZESK2DTLFSN
Operating Temperature	-25°C ~ 85°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Insulation Height	0.248" (6.30mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 4 position 0.059" (1.50mm)	Current Rating	2A
Contact Type	Outer Shroud Contact	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	0.134" (3.40mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
