BM20B-SRDS-A-G-TF(LF)(SN)

JST

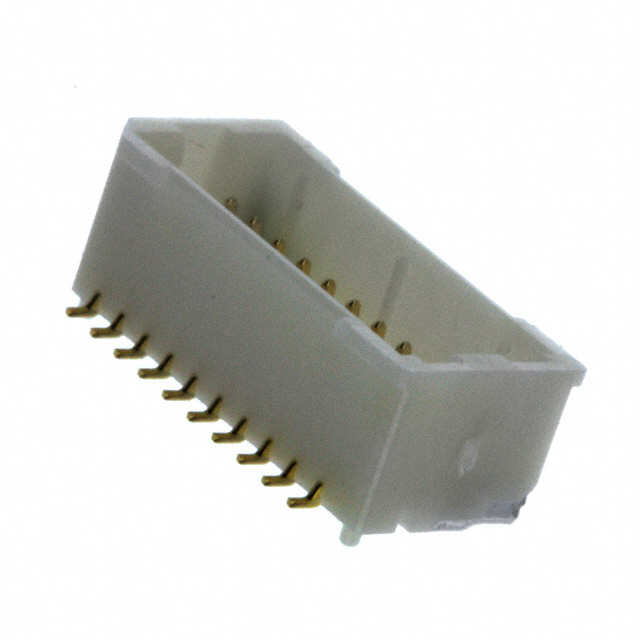

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BM20B-SRDS-A-G-TF(LF)(SN)
Manufacturer/Brand:	JST
Product description	CONN HEADER SHD 20POS TOP W/BOSS
Datasheets:	1.BM20B-SRDS-A-G-TF(LF)(SN).pdf 2.BM20B-SRDS-A-G-TF(LF)(SN).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	99330 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 99330 pcs

Reference Price (In US Dollars)

1250 pcs: $0.338

2500 pcs: $0.315

6250 pcs: $0.299

8750 pcs: $0.293

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.338

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BM20B-SRDS-A-G-TF(LF)(SN)

Part Number	BM20B-SRDS-A-G-TF(LF)(SN)	Manufacturer	JST
Description	CONN HEADER SHD 20POS TOP W/BOSS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	99330 pcs	Data sheet	1.BM20B-SRDS-A-G-TF(LF)(SN).pdf 2.BM20B-SRDS-A-G-TF(LF)(SN).pdf
Voltage Rating	50V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SHD	Row Spacing - Mating	-
Pitch - Mating	0.039" (1.00mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	(Q)BM20B-SRDS-A-G-TF(LF)(SN) 455-1870-2 BM20BSRDSAGTFLFSN
Operating Temperature	-25°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	6.3mm
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Insulation Height	0.167" (4.25mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide, Solder Retention	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount 20 position 0.039" (1.00mm)	Current Rating	1A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	-
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
