BM11B-GHS-TBT(LF)(SN)(N)

JST

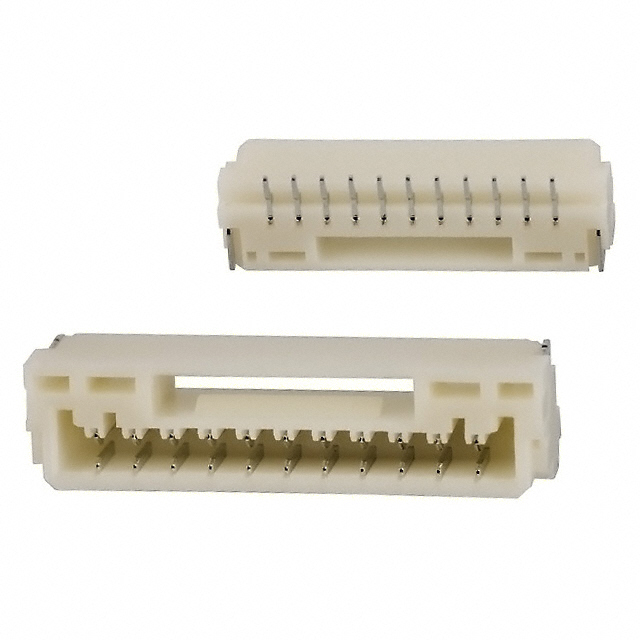

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BM11B-GHS-TBT(LF)(SN)(N)
Manufacturer/Brand:	JST
Product description	CONN HEADER GH TOP 11POS 1.25MM
Datasheets:	BM11B-GHS-TBT(LF)(SN)(N).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	279452 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 279452 pcs

Reference Price (In US Dollars)

2500 pcs: $0.112

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.112

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BM11B-GHS-TBT(LF)(SN)(N)

Part Number	BM11B-GHS-TBT(LF)(SN)(N)	Manufacturer	JST
Description	CONN HEADER GH TOP 11POS 1.25MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	279452 pcs	Data sheet	BM11B-GHS-TBT(LF)(SN)(N).pdf
Voltage Rating	50V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	GH	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	455-1587-2 455-1587-2-ND BM11B-GHS-TBT(LF)(SN) BM11B-GHS-TBT(LF)(SN)(N)-
Operating Temperature	-25°C ~ 85°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	11
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	7.3mm
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA9T), Nylon 9T	Insulation Height	0.159" (4.05mm)
Insulation Color	Natural	Ingress Protection	-
Features	Pick and Place, Solder Retention	Fastening Type	Locking Ramp
Detailed Description	Connector Header Surface Mount 11 position 0.049" (1.25mm)	Current Rating	1A
Contact Type	Outer Shroud Contact	Contact Shape	Rectangular
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
