JST

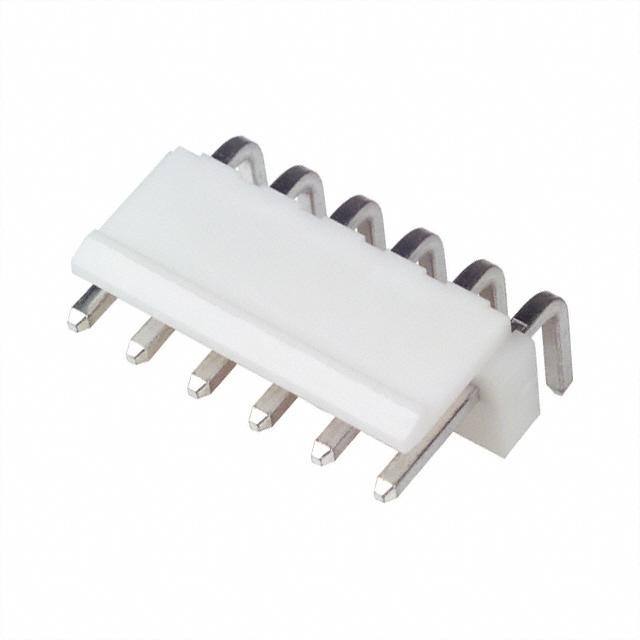

| Part Number | B6PS-VH | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER VH SIDE 6POS 3.96MM | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4130 pcs | Data sheet | B6PS-VH.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 1 Wall |
| Series | VH | Row Spacing - Mating | - |
| Pitch - Mating | 0.156" (3.96mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 455-1232 |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.335" (8.51mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 6 position 0.156" (3.96mm) |
| Current Rating | 10A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.142" (3.60mm) | Contact Length - Mating | 0.303" (7.70mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header | Applications | - |
