JST

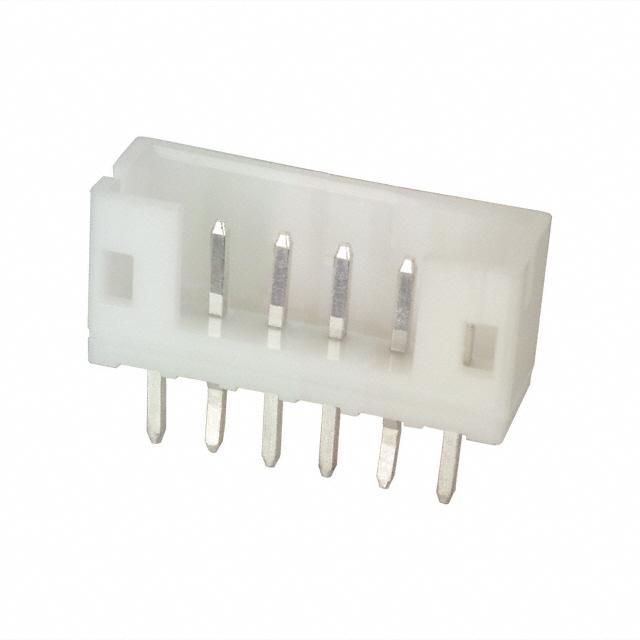

| Part Number | B6B-PH-K-S(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER PH TOP 6POS 2MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 265982 pcs | Data sheet | B6B-PH-K-S(LF)(SN).pdf |
| Voltage Rating | 100V | Termination | Press-Fit, Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | PH | Row Spacing - Mating | - |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Overall Contact Length | 0.333" (8.45mm) | Other Names | (W)B6B-PH-K-S(LF)(SN) 455-1708 B6BPHKSLFSN |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 8mm |
| Manufacturer Standard Lead Time | 24 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Insulation Height | 0.236" (6.00mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Through Hole 6 position 0.079" (2.00mm) | Current Rating | 2A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.134" (3.40mm) |
| Contact Length - Mating | 0.130" (3.30mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
