B2B-XH-A-GU

JST

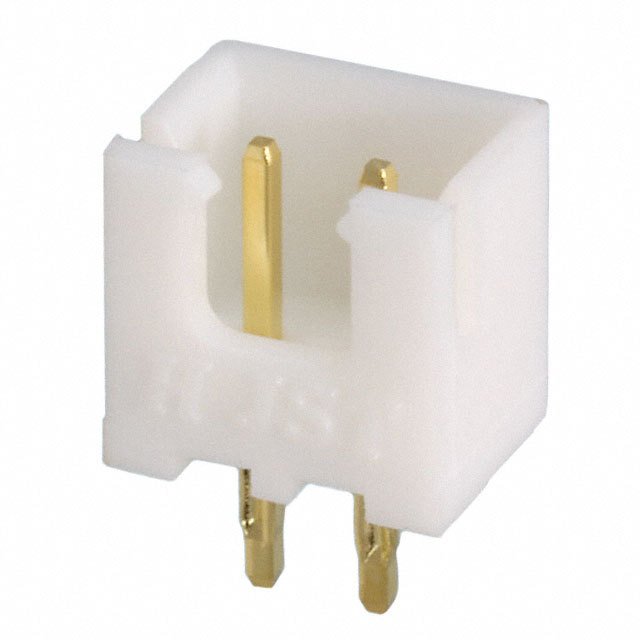

Image may be representation. See specifications for product details.

Product Overview

Part Number:	B2B-XH-A-GU
Manufacturer/Brand:	JST
Product description	CONN HEADER XH TOP 2POS 2.5MM
Datasheets:	B2B-XH-A-GU.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	427391 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 427391 pcs

Reference Price (In US Dollars)

1 pcs: $0.083

10 pcs: $0.077

100 pcs: $0.054

500 pcs: $0.045

1000 pcs: $0.037

5000 pcs: $0.033

10000 pcs: $0.03

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.083

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of B2B-XH-A-GU

Part Number	B2B-XH-A-GU	Manufacturer	JST
Description	CONN HEADER XH TOP 2POS 2.5MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	427391 pcs	Data sheet	B2B-XH-A-GU.pdf
Voltage Rating	250V	Termination	Press-Fit, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	XH	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	(G)B2B-XH-A-GU(P); 455-2946 B2B-XH-A-GU(P) B2B-XH-A-GU(P)-ND B2B-XH-A-GU(P); B2B-XH-A-GU(P);-ND B2B-XH-A-GU-ND Q4391635
Operating Temperature	-25°C ~ 85°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	9.8mm
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.276" (7.00mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole 2 position 0.098" (2.50mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.134" (3.40mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	16.0µin (0.41µm)	Contact Finish - Post	-
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
