B16B-PNDZS-1 (T)(LF)(SN)

JST

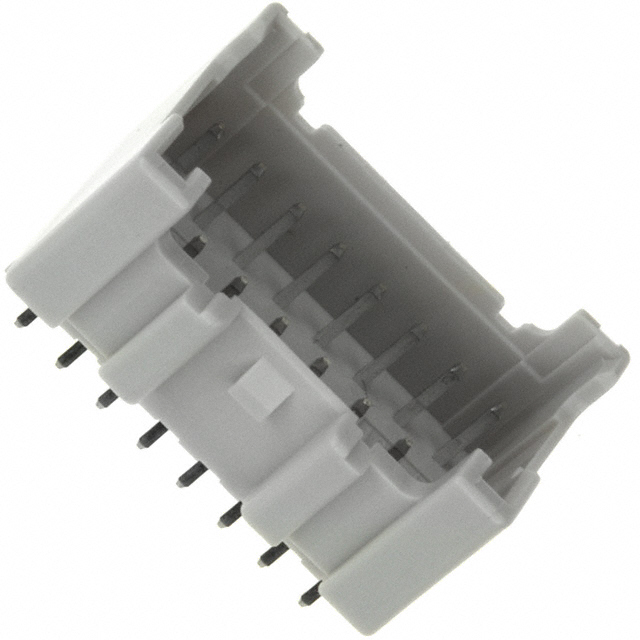

Image may be representation. See specifications for product details.

Product Overview

Part Number:	B16B-PNDZS-1 (T)(LF)(SN)
Manufacturer/Brand:	JST
Product description	CONN HEADR PND TOP 16POS 2MM PCB
Datasheets:	B16B-PNDZS-1 (T)(LF)(SN).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	139568 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 139568 pcs

Reference Price (In US Dollars)

1 pcs: $0.238

10 pcs: $0.223

416 pcs: $0.156

832 pcs: $0.134

1248 pcs: $0.123

5408 pcs: $0.108

10400 pcs: $0.10

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.238

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of B16B-PNDZS-1 (T)(LF)(SN)

Part Number	B16B-PNDZS-1 (T)(LF)(SN)	Manufacturer	JST
Description	CONN HEADR PND TOP 16POS 2MM PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	139568 pcs	Data sheet	B16B-PNDZS-1 (T)(LF)(SN).pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	PND	Row Spacing - Mating	0.197" (5.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	455-2326 B16B-PNDZS-1 (T) (LF)(SN) B16B-PNDZS-1(T) (LF)(SN) B16B-PNDZS-1T(LF)(SN) B16BPNDZS1TLFSN
Operating Temperature	-25°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	12.9mm
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Insulation Height	0.390" (9.91mm)
Insulation Color	Ivory	Ingress Protection	-
Features	Board Guide	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 16 position 0.079" (2.00mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
