B12B-PADSS-1F(LF)(SN)

JST

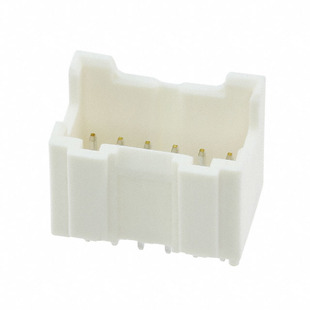

Image may be representation. See specifications for product details.

Product Overview

Part Number:	B12B-PADSS-1F(LF)(SN)
Manufacturer/Brand:	JST
Product description	CONN HEADER 12POS 2MM TIN
Datasheets:	B12B-PADSS-1F(LF)(SN).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	133893 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 133893 pcs

Reference Price (In US Dollars)

1 pcs: $0.242

10 pcs: $0.227

100 pcs: $0.174

500 pcs: $0.151

1000 pcs: $0.125

5000 pcs: $0.11

10000 pcs: $0.102

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.242

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of B12B-PADSS-1F(LF)(SN)

Part Number	B12B-PADSS-1F(LF)(SN)	Manufacturer	JST
Description	CONN HEADER 12POS 2MM TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	133893 pcs	Data sheet	B12B-PADSS-1F(LF)(SN).pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	PAD	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	455-2943 B12B-PADSS-1F(LF)(SN)-ND B12B-PADSS-1F(LF)(SN); B12B-PADSS-1F(LF)(SN);-ND Q5534293B
Operating Temperature	-25°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	12.4mm
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Insulation Height	0.402" (10.20mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 12 position 0.079" (2.00mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.134" (3.40mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
