JST

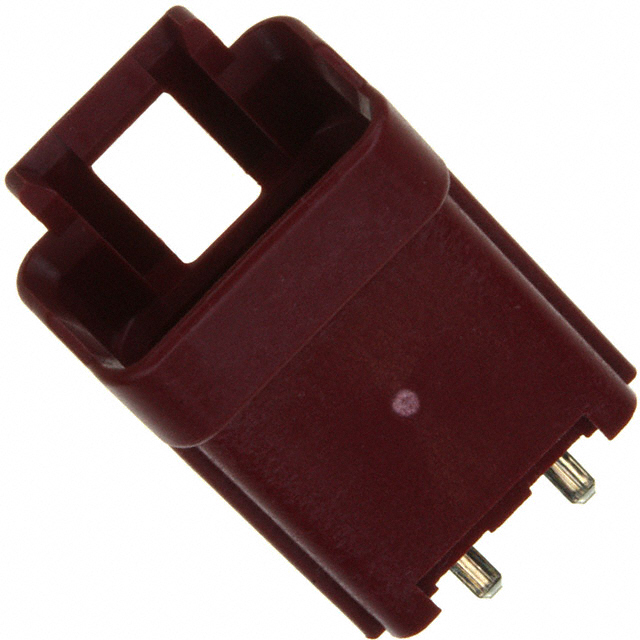

| Part Number | B02B-WPJRS-2(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HDR T-H VERT 2POS RED 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 341393 pcs | Data sheet | B02B-WPJRS-2(LF)(SN).pdf |
| Voltage Rating | 300V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | WPJ | Row Spacing - Mating | - |
| Pitch - Mating | 0.197" (5.00mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 455-2446 B02B-WPJRS-2 (LF)(SN) |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 25.3mm |
| Manufacturer Standard Lead Time | 24 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.843" (21.41mm) |
| Insulation Color | Red | Ingress Protection | Waterproof |
| Features | Board Guide | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 2 position 0.197" (5.00mm) | Current Rating | 7A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.130" (3.30mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
