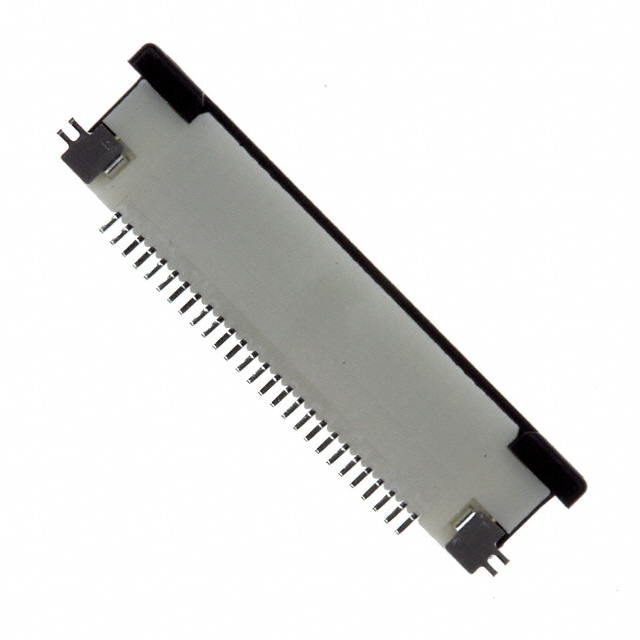

27FLZ-RSM2-TB(LF)(SN)

JST

Image may be representation. See specifications for product details.

Product Overview

Part Number:	27FLZ-RSM2-TB(LF)(SN)
Manufacturer/Brand:	JST
Product description	CONN FFC BOTTOM 27POS 0.50MM R/A
Datasheets:	27FLZ-RSM2-TB(LF)(SN).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	63502 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 63502 pcs

Reference Price (In US Dollars)

1 pcs: $0.603

10 pcs: $0.548

25 pcs: $0.514

50 pcs: $0.492

100 pcs: $0.469

250 pcs: $0.425

500 pcs: $0.391

1000 pcs: $0.335

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.603

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 27FLZ-RSM2-TB(LF)(SN)

Part Number	27FLZ-RSM2-TB(LF)(SN)	Manufacturer	JST
Description	CONN FFC BOTTOM 27POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	63502 pcs	Data sheet	27FLZ-RSM2-TB(LF)(SN).pdf
Voltage Rating	50V	Termination	Solder
Series	FLZ	Pitch	0.020" (0.50mm)
Packaging	Cut Tape (CT)	Other Names	455-1980-1
Operating Temperature	-25°C ~ 85°C	Number of Positions	27
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	-	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	24 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA6T), Nylon 6T
Housing Color	Natural	Height Above Board	0.079" (2.00mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	27 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Tin
Connector/Contact Type	Contacts, Bottom	Cable End Type	Tapered
Actuator Material	Polyamide (PA6T), Nylon 6T	Actuator Color	Black
