JST

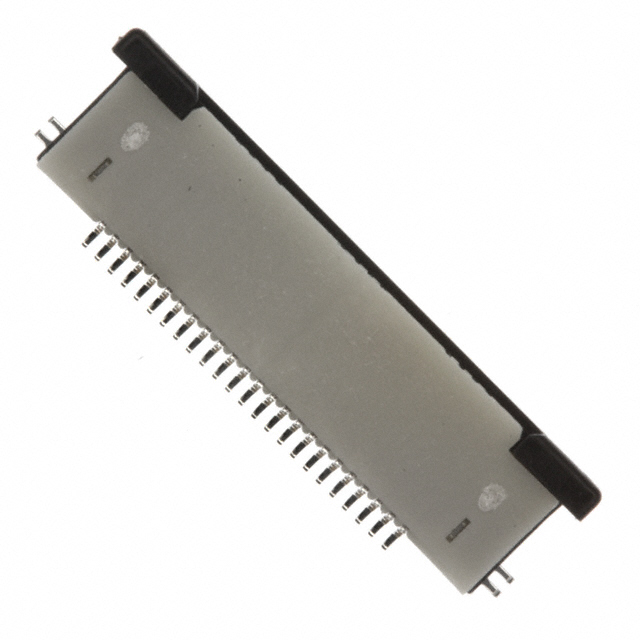

| Part Number | 24FLZ-SM2-TB(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN FFC TOP 24POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54582 pcs | Data sheet | 24FLZ-SM2-TB(LF)(SN).pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | FLZ | Pitch | 0.020" (0.50mm) |
| Packaging | Cut Tape (CT) | Other Names | 455-1977-1 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 24 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 24 Weeks | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA6T), Nylon 6T |
| Housing Color | Gray | Height Above Board | 0.079" (2.00mm) |
| Flat Flex Type | FFC, FPC | Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 24 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Top | Cable End Type | Tapered |
| Actuator Material | Polyamide (PA6T), Nylon 6T | Actuator Color | Black |
