JST

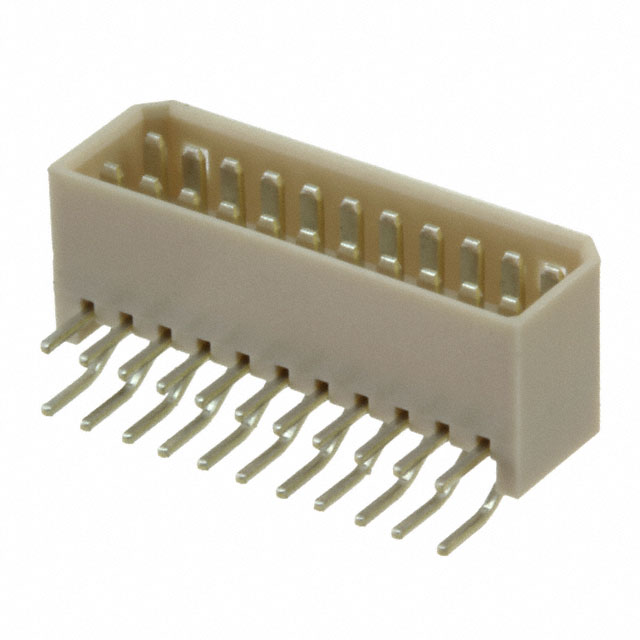

| Part Number | 22PS-JED | Manufacturer | JST |
|---|---|---|---|
| Description | CONN 22 POS 1.25MM RA THRU-HOLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75407 pcs | Data sheet | 22PS-JED.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Style | Board to Board | Shrouding | Shrouded - 4 Wall |
| Series | JED | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.049" (1.25mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 22PS-JED(LF)(SN) 22PS-JED(LF)(SN)-ND 22PS-JED-ND 455-2939 Q4490521A T0873767 |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 22 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 24 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Insulation Height | 0.181" (4.60mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Through Hole, Right Angle 22 position 0.049" (1.25mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.079" (2.00mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
