20PS-JMDSS-G-1-TF(LF)(SN)

JST

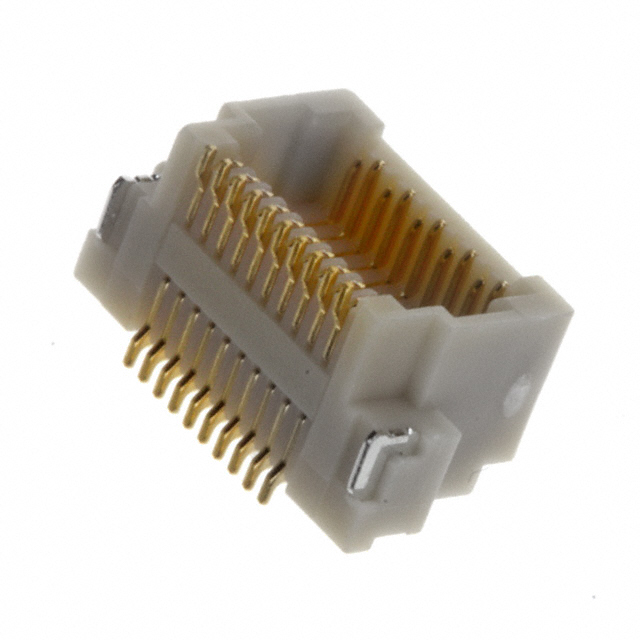

Image may be representation. See specifications for product details.

Product Overview

Part Number:	20PS-JMDSS-G-1-TF(LF)(SN)
Manufacturer/Brand:	JST
Product description	CONN PLUG JMD 20POS SIDE GOLD
Datasheets:	20PS-JMDSS-G-1-TF(LF)(SN).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	173187 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 173187 pcs

Reference Price (In US Dollars)

1500 pcs: $0.203

3000 pcs: $0.196

7500 pcs: $0.189

10500 pcs: $0.18

15000 pcs: $0.176

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.203

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 20PS-JMDSS-G-1-TF(LF)(SN)

Part Number	20PS-JMDSS-G-1-TF(LF)(SN)	Manufacturer	JST
Description	CONN PLUG JMD 20POS SIDE GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	173187 pcs	Data sheet	20PS-JMDSS-G-1-TF(LF)(SN).pdf
Series	JMD	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	20PS-JMDSS-G-1-TF(S)(LF)(SN) 20PSJMDSSG1TFLFSN 455-1886-2
Number of Rows	2	Number of Positions	20
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	-	Manufacturer Standard Lead Time	24 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.189" (4.80mm)
Features	Solder Retention	Detailed Description	20 Position Connector Plug, Outer Shroud Contacts Surface Mount, Right Angle Gold
Contact Finish Thickness	-	Contact Finish	Gold
Connector Type	Plug, Outer Shroud Contacts
