JST

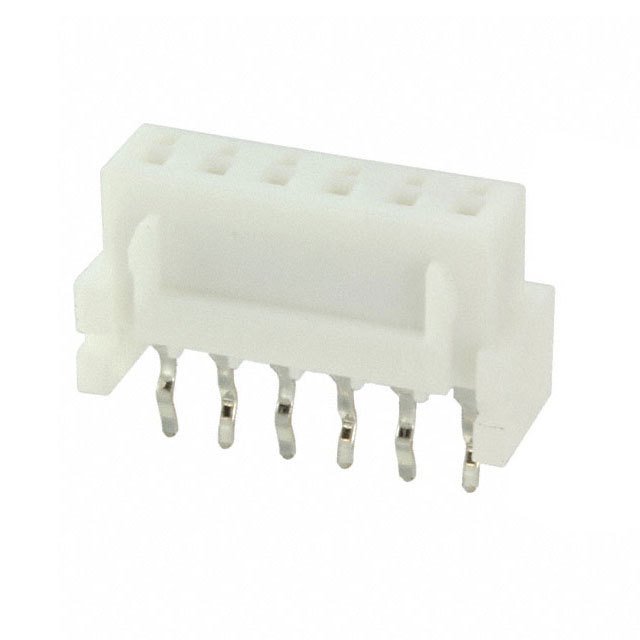

| Part Number | 06JQ-BT | Manufacturer | JST |
|---|---|---|---|
| Description | CONN RECEPT HOUSING 6POS TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 223328 pcs | Data sheet | 06JQ-BT.pdf |
| Voltage Rating | 250V | Termination | Press-Fit, Solder |
| Style | Board to Board | Series | JQ |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Other Names | 06JQ-BT-ND 455-2969 Q8289025BF |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 11.8mm |
| Manufacturer Standard Lead Time | 24 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Insulation Height | 0.374" (9.50mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Friction Lock |
| Detailed Description | 6 Position Receptacle Connector 0.098" (2.50mm) Through Hole Tin | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | - |
