05DB-8M(LF)

JST

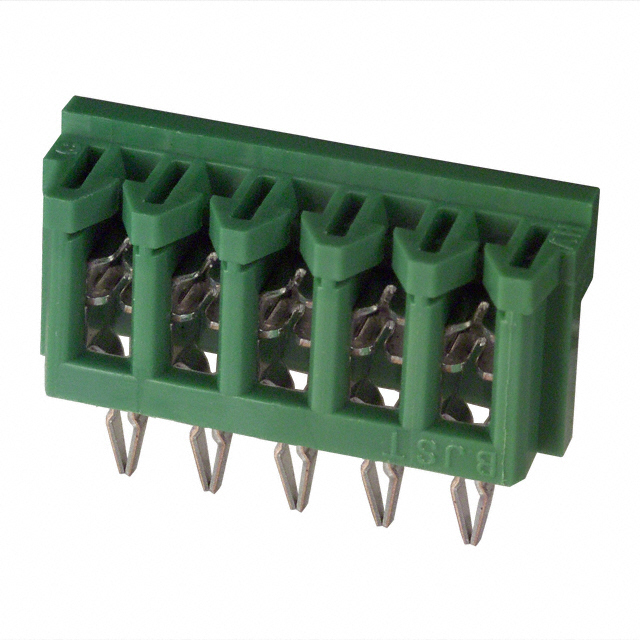

Image may be representation. See specifications for product details.

Product Overview

Part Number:	05DB-8M(LF)
Manufacturer/Brand:	JST
Product description	CONN IDC DB 5POS 2.5MM GRN PCB
Datasheets:	05DB-8M(LF).pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	445200 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 445200 pcs

Reference Price (In US Dollars)

500 pcs: $0.084

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.084

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 05DB-8M(LF)

Part Number	05DB-8M(LF)	Manufacturer	JST
Description	CONN IDC DB 5POS 2.5MM GRN PCB	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	445200 pcs	Data sheet	05DB-8M(LF).pdf
Wire Gauge	24-28 AWG, Stranded	Series	DB
Row Spacing	-	Packaging	Bulk
Other Names	05DB-8M 455-1073	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole, Press-Fit	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Features	Closed End	Detailed Description	5 Position Individual Wires Connector Green IDC 24-28 AWG, Stranded Through Hole, Press-Fit
Contact Finish Thickness	-	Contact Finish	Tin-Lead
Connector Type	Individual Wires	Color	Green
Cable Termination	IDC	Cable Pitch	0.098" (2.50mm)
Board-Side Pitch	0.098" (2.50mm)
