JST

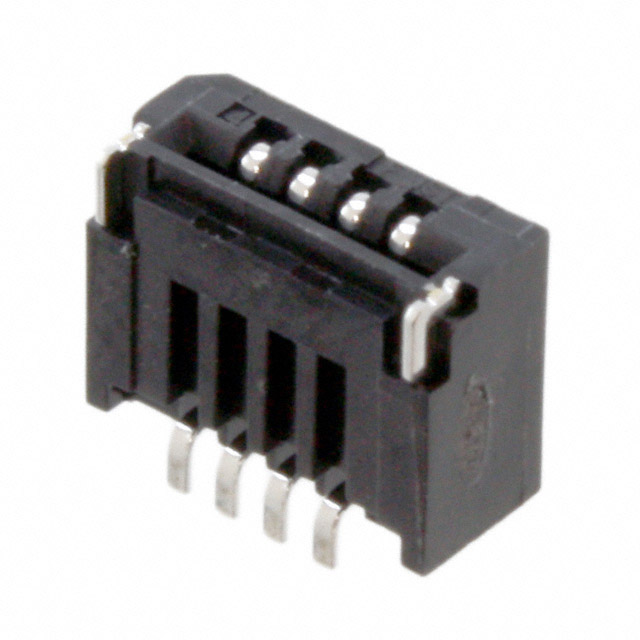

| Part Number | 04FMN-SMT-A-TF(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN FFC TOP 4POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 442705 pcs | Data sheet | 04FMN-SMT-A-TF(LF)(SN).pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | FMN | Pitch | 0.039" (1.00mm) |
| Packaging | Tape & Reel (TR) | Other Names | 04FMNSMTATFLFSN 455-1919-2 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 4 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 24 Weeks | Locking Feature | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA6T), Nylon 6T |
| Housing Color | Black | Height Above Board | 0.118" (3.00mm) |
| Flat Flex Type | FFC | Features | Low Insertion Force (LIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 4 Position FFC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Top | Cable End Type | Straight |
| Actuator Material | - | Actuator Color | - |
