NJM2846DL3-23-TE1

JRC Corporation / NJRC

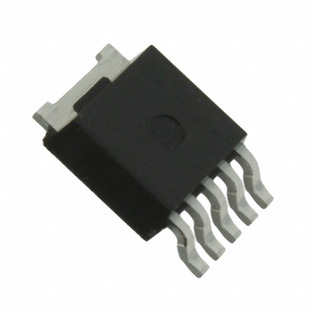

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NJM2846DL3-23-TE1
Manufacturer/Brand:	JRC Corporation / NJRC
Product description	IC REG LINEAR 2.3V 800MA TO252-5
Datasheets:	NJM2846DL3-23-TE1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	203347 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 203347 pcs

Reference Price (In US Dollars)

3000 pcs: $0.164

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.164

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NJM2846DL3-23-TE1

Part Number	NJM2846DL3-23-TE1	Manufacturer	JRC Corporation / NJRC
Description	IC REG LINEAR 2.3V 800MA TO252-5	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	203347 pcs	Data sheet	NJM2846DL3-23-TE1.pdf
Voltage Dropout (Max)	0.28V @ 500mA	Voltage - Output (Min/Fixed)	2.3V
Voltage - Output (Max)	-	Voltage - Input (Max)	14V
Supplier Device Package	TO-252-5	Series	-
Protection Features	Over Temperature, Short Circuit	Packaging	Tape & Reel (TR)
Package / Case	TO-252-6, DPak (5 Leads + Tab)	PSRR	75dB (1kHz)
Output Type	Fixed	Output Configuration	Positive
Other Names	NJM#2846DL3-23-TE1 NJM2846DL2-23-TE1 NJM2846DL223TE1TR NJM2846DL223TE1TR-ND NJM2846DL3-23-TE1TR NJM2846DL323TE1#TR-ND NJM2846DL323TE1TR NJM2846DL323TE1TR-ND	Operating Temperature	-40°C ~ 85°C
Number of Regulators	1	Mounting Type	Surface Mount
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 2.3V 800mA TO-252-5	Current - Quiescent (Iq)	600µA
Current - Output	800mA	Control Features	Enable
