WR-40PB-HF-HD-A1E

JAE Electronics, Inc.

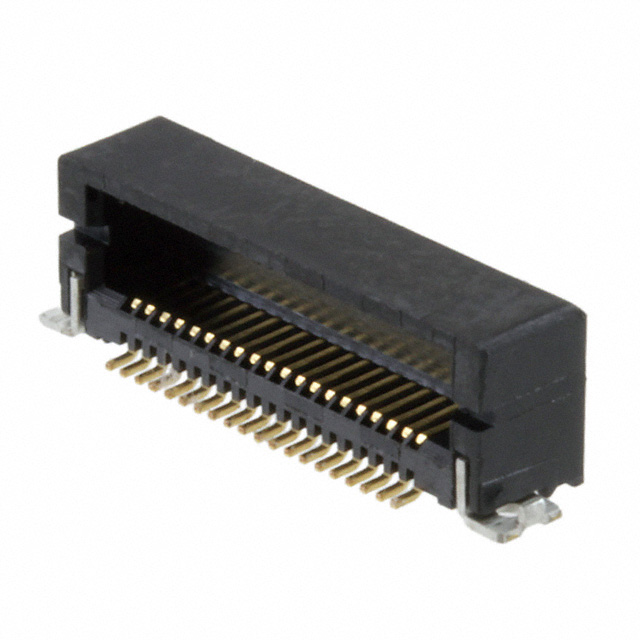

Image may be representation. See specifications for product details.

Product Overview

Part Number:	WR-40PB-HF-HD-A1E
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN PLUG 0.5MM 40POS SMD R/A
Datasheets:	1.WR-40PB-HF-HD-A1E.pdf 2.WR-40PB-HF-HD-A1E.pdf 3.WR-40PB-HF-HD-A1E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19153 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 19153 pcs

Reference Price (In US Dollars)

1 pcs: $1.969

10 pcs: $1.89

25 pcs: $1.733

50 pcs: $1.654

100 pcs: $1.575

250 pcs: $1.378

500 pcs: $1.339

1000 pcs: $1.142

2500 pcs: $1.063

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.969

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of WR-40PB-HF-HD-A1E

Part Number	WR-40PB-HF-HD-A1E	Manufacturer	JAE Electronics, Inc.
Description	CONN PLUG 0.5MM 40POS SMD R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19153 pcs	Data sheet	1.WR-40PB-HF-HD-A1E.pdf 2.WR-40PB-HF-HD-A1E.pdf 3.WR-40PB-HF-HD-A1E.pdf
Series	WR	Pitch	0.020" (0.50mm)
Packaging	Strip	Other Names	670-1973 WR-40PB-HF-HD-A1E-ND WR40PBHFHDA1E
Number of Rows	2	Number of Positions	40
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	-	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.185" (4.70mm)
Features	Board Guide, Solder Retention	Detailed Description	40 Position Connector Plug, Outer Shroud Contacts Surface Mount, Right Angle Gold
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector Type	Plug, Outer Shroud Contacts
