WR-120S-VFH05-N1

JAE Electronics, Inc.

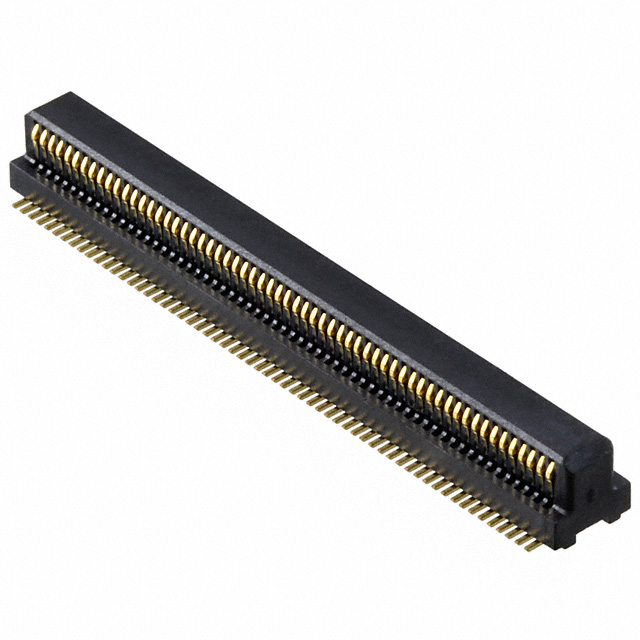

Image may be representation. See specifications for product details.

Product Overview

Part Number:	WR-120S-VFH05-N1
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN RECEPT 0.5MM 120POS SMD
Datasheets:	1.WR-120S-VFH05-N1.pdf 2.WR-120S-VFH05-N1.pdf 3.WR-120S-VFH05-N1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12767 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12767 pcs

Reference Price (In US Dollars)

93 pcs: $2.622

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.622

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of WR-120S-VFH05-N1

Part Number	WR-120S-VFH05-N1	Manufacturer	JAE Electronics, Inc.
Description	CONN RECEPT 0.5MM 120POS SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12767 pcs	Data sheet	1.WR-120S-VFH05-N1.pdf 2.WR-120S-VFH05-N1.pdf 3.WR-120S-VFH05-N1.pdf
Series	WR	Pitch	0.020" (0.50mm)
Packaging	Tray	Other Names	670-1771 WR-120S-VFH05-N1-ND WR120SVFH05N1
Number of Rows	2	Number of Positions	120
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	4.5mm, 5.5mm, 6.5mm	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.148" (3.75mm)
Features	-	Detailed Description	120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector Type	Receptacle, Center Strip Contacts
