WP7B-P070VA1-R500

JAE Electronics, Inc.

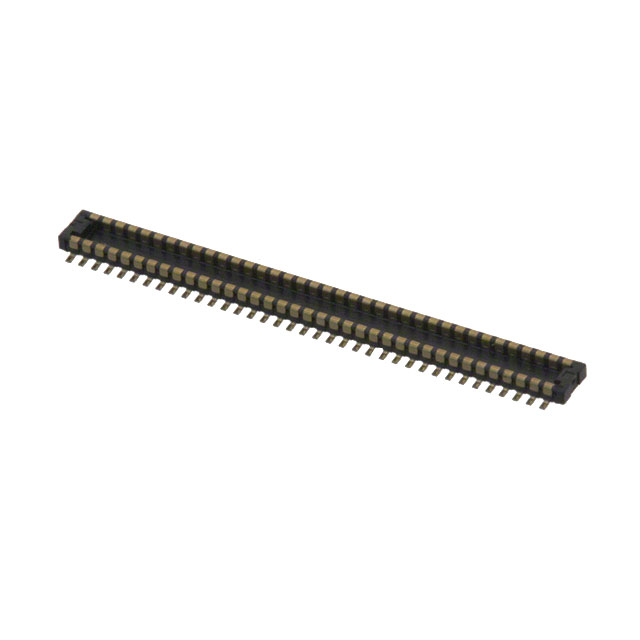

Image may be representation. See specifications for product details.

Product Overview

Part Number:	WP7B-P070VA1-R500
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN PLUG 0.4MM 70POS DUAL SMD
Datasheets:	1.WP7B-P070VA1-R500.pdf 2.WP7B-P070VA1-R500.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	62917 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 62917 pcs

Reference Price (In US Dollars)

500 pcs: $0.629

1000 pcs: $0.536

1500 pcs: $0.518

2500 pcs: $0.499

5000 pcs: $0.481

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.629

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of WP7B-P070VA1-R500

Part Number	WP7B-P070VA1-R500	Manufacturer	JAE Electronics, Inc.
Description	CONN PLUG 0.4MM 70POS DUAL SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	62917 pcs	Data sheet	1.WP7B-P070VA1-R500.pdf 2.WP7B-P070VA1-R500.pdf
Series	WP7	Pitch	0.016" (0.40mm)
Packaging	Tape & Reel (TR)	Other Names	670-2585 670-2585-2 670-2585-ND AA07B-P070VA1-R100 C2777-WP7B-P070VA1-R500 WP7B-P070VA1 WP7BP070VA1R500
Number of Rows	2	Number of Positions	70
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	0.7mm	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	0.020" (0.50mm)	Features	Solder Retention
Detailed Description	70 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold	Contact Finish Thickness	3.90µin (0.099µm)
Contact Finish	Gold	Connector Type	Plug, Outer Shroud Contacts
