WP7A-S020VA1-R500

JAE Electronics, Inc.

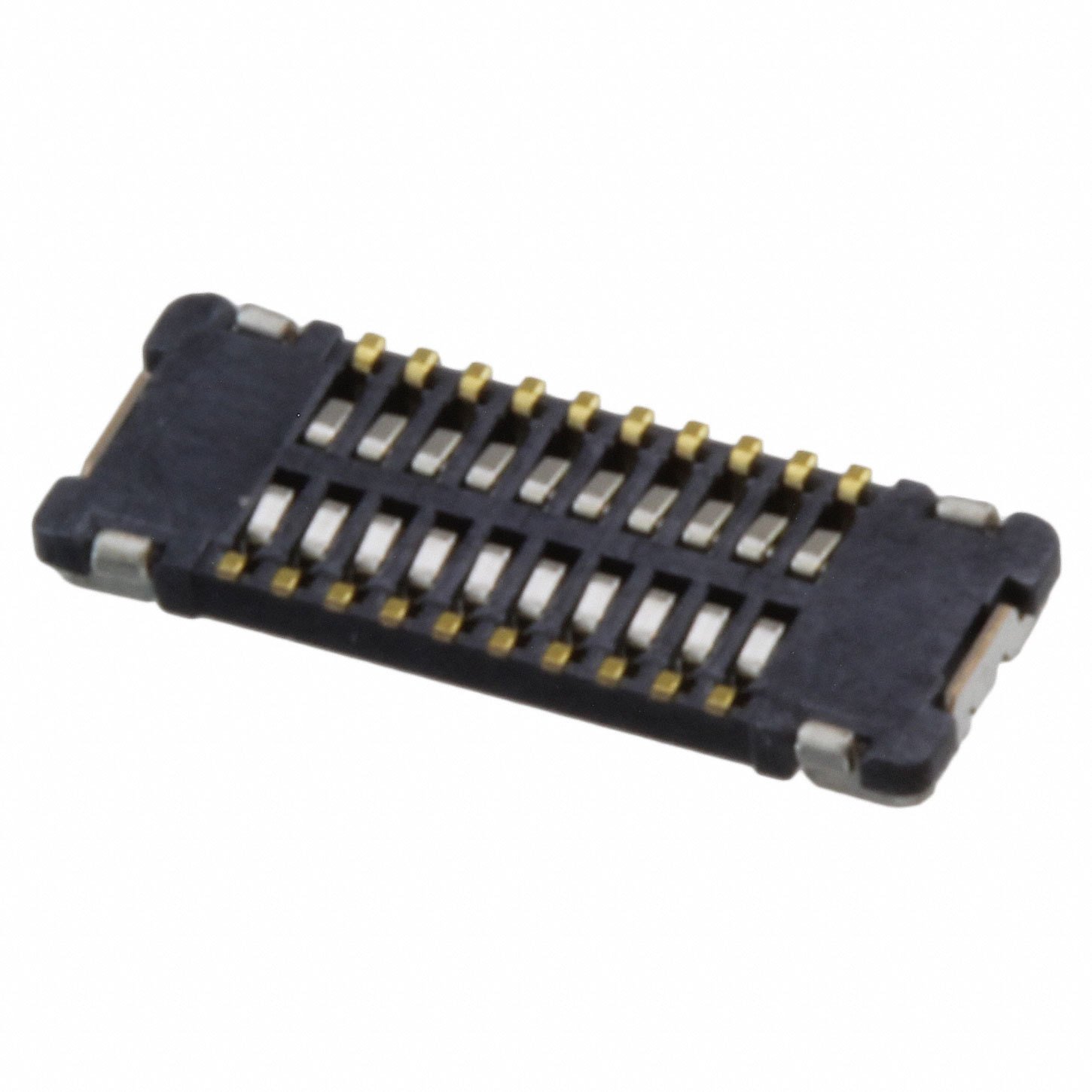

Image may be representation. See specifications for product details.

Product Overview

Part Number:	WP7A-S020VA1-R500
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN RCPT 0.4MM 20POS DUAL SMD
Datasheets:	1.WP7A-S020VA1-R500.pdf 2.WP7A-S020VA1-R500.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	105412 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 105412 pcs

Reference Price (In US Dollars)

500 pcs: $0.281

1000 pcs: $0.25

1500 pcs: $0.234

2500 pcs: $0.226

5000 pcs: $0.218

12500 pcs: $0.203

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.281

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of WP7A-S020VA1-R500

Part Number	WP7A-S020VA1-R500	Manufacturer	JAE Electronics, Inc.
Description	CONN RCPT 0.4MM 20POS DUAL SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	105412 pcs	Data sheet	1.WP7A-S020VA1-R500.pdf 2.WP7A-S020VA1-R500.pdf
Series	WP7	Pitch	0.016" (0.40mm)
Packaging	Tape & Reel (TR)	Other Names	670-2658-2 C2777-WP7A-S020VA1-R500 WP7AS020VA1R500
Number of Rows	2	Number of Positions	20
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	0.7mm	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	0.028" (0.71mm)	Features	Solder Retention
Detailed Description	20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold	Contact Finish Thickness	3.90µin (0.099µm)
Contact Finish	Gold	Connector Type	Receptacle, Center Strip Contacts
