WP21-S020VA1-R8000

JAE Electronics, Inc.

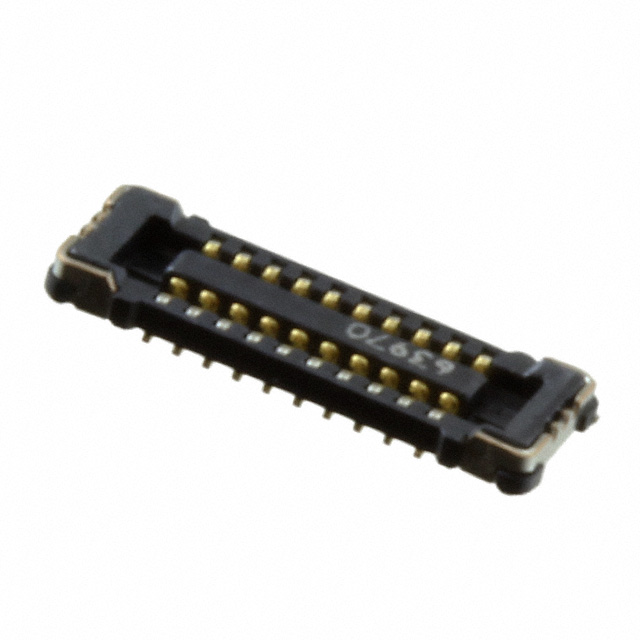

Image may be representation. See specifications for product details.

Product Overview

Part Number:	WP21-S020VA1-R8000
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	20 PIN BOARD TO BOARD SOCKET, 0.
Datasheets:	1.WP21-S020VA1-R8000.pdf 2.WP21-S020VA1-R8000.pdf 3.WP21-S020VA1-R8000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	95046 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 95046 pcs

Reference Price (In US Dollars)

1 pcs: $0.405

10 pcs: $0.357

25 pcs: $0.336

50 pcs: $0.322

100 pcs: $0.308

250 pcs: $0.28

500 pcs: $0.252

1000 pcs: $0.224

2500 pcs: $0.203

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.405

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of WP21-S020VA1-R8000

Part Number	WP21-S020VA1-R8000	Manufacturer	JAE Electronics, Inc.
Description	20 PIN BOARD TO BOARD SOCKET, 0.	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	95046 pcs	Data sheet	1.WP21-S020VA1-R8000.pdf 2.WP21-S020VA1-R8000.pdf 3.WP21-S020VA1-R8000.pdf
Series	WP21	Pitch	0.014" (0.35mm)
Packaging	Original-Reel®	Other Names	670-2942-6
Number of Rows	2	Number of Positions	20
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	0.6mm	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.023" (0.59mm)
Features	Solder Retention	Detailed Description	20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector Type	Receptacle, Center Strip Contacts
