TX24-80R-10ST-N1E

JAE Electronics, Inc.

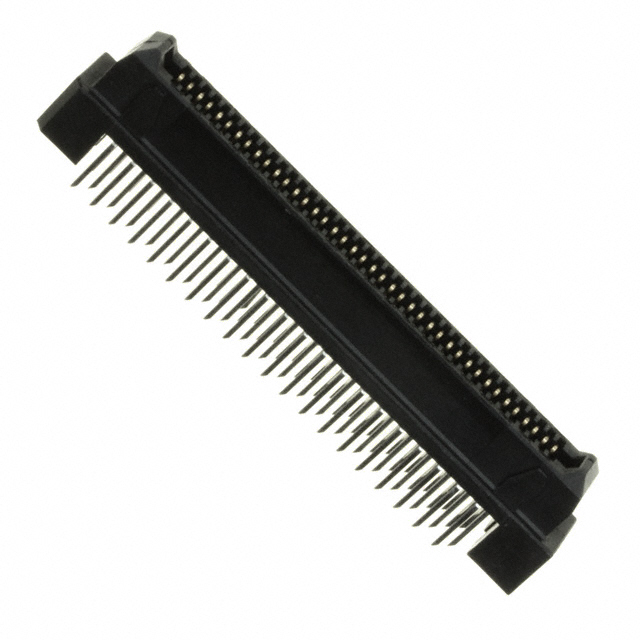

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TX24-80R-10ST-N1E
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN RCPT 1.27MM 80POS GOLD PCB
Datasheets:	1.TX24-80R-10ST-N1E.pdf 2.TX24-80R-10ST-N1E.pdf 3.TX24-80R-10ST-N1E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	51358 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 51358 pcs

Reference Price (In US Dollars)

360 pcs: $0.59

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.59

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TX24-80R-10ST-N1E

Part Number	TX24-80R-10ST-N1E	Manufacturer	JAE Electronics, Inc.
Description	CONN RCPT 1.27MM 80POS GOLD PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51358 pcs	Data sheet	1.TX24-80R-10ST-N1E.pdf 2.TX24-80R-10ST-N1E.pdf 3.TX24-80R-10ST-N1E.pdf
Series	TX24	Pitch	0.050" (1.27mm)
Packaging	Tray	Other Names	670-1409
Number of Rows	2	Number of Positions	80
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	16mm, 18mm, 22mm	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.563" (14.30mm)
Features	-	Detailed Description	80 Position Connector Receptacle, Outer Shroud Contacts Through Hole Gold
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector Type	Receptacle, Outer Shroud Contacts
