SMBS003D00

JAE Electronics, Inc.

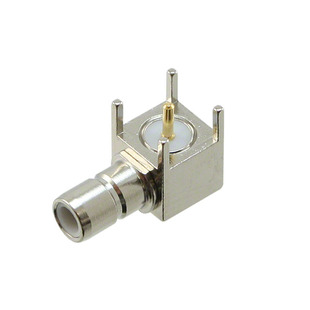

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SMBS003D00
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN SMB RCPT R/A 50 OHM PCB
Datasheets:	1.SMBS003D00.pdf 2.SMBS003D00.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	24281 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 24281 pcs

Reference Price (In US Dollars)

1000 pcs: $1.205

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.205

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SMBS003D00

Part Number	SMBS003D00	Manufacturer	JAE Electronics, Inc.
Description	CONN SMB RCPT R/A 50 OHM PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24281 pcs	Data sheet	1.SMBS003D00.pdf 2.SMBS003D00.pdf
Shield Termination	Solder	Series	-
Packaging	Tray	Operating Temperature	-40°C ~ 85°C
Number of Ports	1	Mounting Type	Through Hole, Right Angle
Mounting Feature	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	-	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	-
Ingress Protection	-	Includes	-
Impedance	50 Ohm	Housing Color	Silver
Frequency - Max	3GHz	Features	-
Fastening Type	Snap-On	Dielectric Material	Polytetrafluoroethylene (PTFE)
Detailed Description	SMB Connector Receptacle, Male Pin 50 Ohm Through Hole, Right Angle Solder	Contact Termination	Solder
Connector Type	Receptacle, Male Pin	Connector Style	SMB
Center Contact Plating	Gold	Center Contact Material	Brass
Cable Group	-	Body Material	Brass
Body Finish	Nickel
