MX49004NQ1

JAE Electronics, Inc.

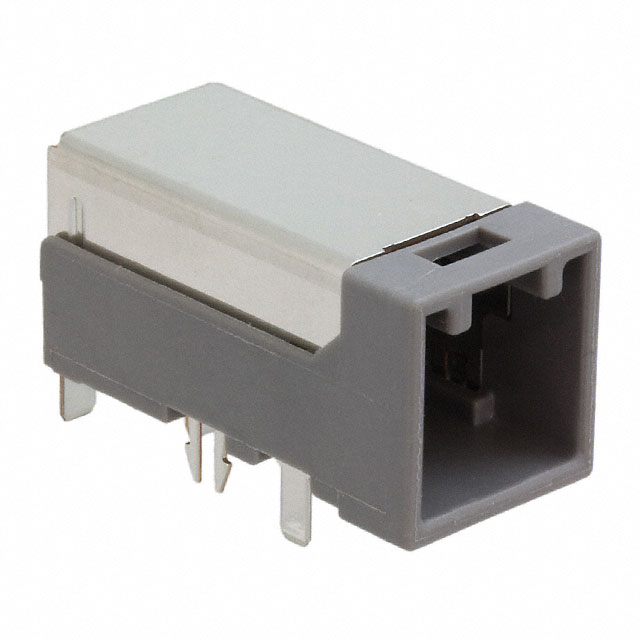

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MX49004NQ1
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN RECEPT LVDS GVIF ANGLE DIP
Datasheets:	1.MX49004NQ1.pdf 2.MX49004NQ1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19427 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 19427 pcs

Reference Price (In US Dollars)

1 pcs: $1.871

10 pcs: $1.795

25 pcs: $1.645

50 pcs: $1.57

100 pcs: $1.496

250 pcs: $1.309

960 pcs: $1.159

1920 pcs: $1.047

2880 pcs: $1.009

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.871

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MX49004NQ1

Part Number	MX49004NQ1	Manufacturer	JAE Electronics, Inc.
Description	CONN RECEPT LVDS GVIF ANGLE DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19427 pcs	Data sheet	1.MX49004NQ1.pdf 2.MX49004NQ1.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MX49	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	670-2707
Operating Temperature	-40°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4 (2 + 1 Power + 1 Ground)
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Syndiotactic Polystyrene (SPS), Glass Filled	Insulation Height	0.492" (12.50mm)
Insulation Color	-	Ingress Protection	-
Features	Board Guide, Board Lock, Shielded	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 4 (2 + 1 Power + 1 Ground) position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive
