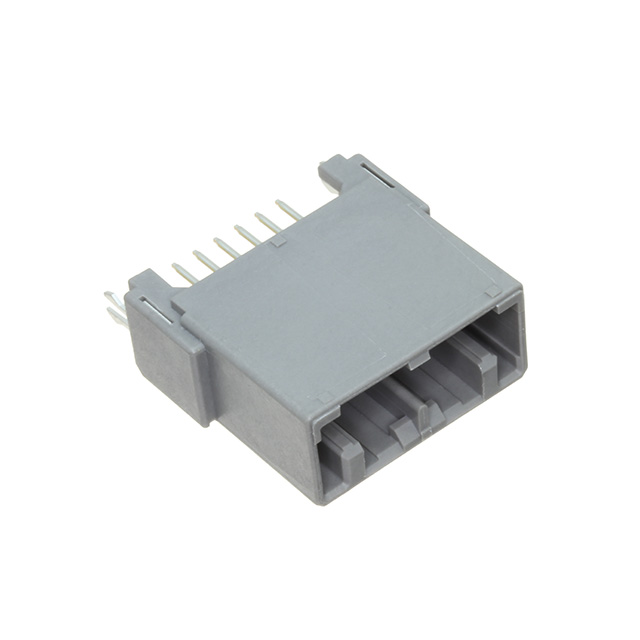

JAE Electronics, Inc.
| Part Number | MX34007UF1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN SOCKET HOUSING 2.2MM 7POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40894 pcs | Data sheet | MX34007UF1.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | MX34 | Row Spacing - Mating | - |
| Pitch - Mating | 0.087" (2.20mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 670-3023 MX34007UF1-ND |
| Operating Temperature | -40°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 7 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled | Insulation Height | 0.594" (15.09mm) |
| Insulation Color | Gray | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole 7 position 0.087" (2.20mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.126" (3.20mm) |
| Contact Length - Mating | 0.303" (7.70mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | Automotive |
