JAE Electronics, Inc.

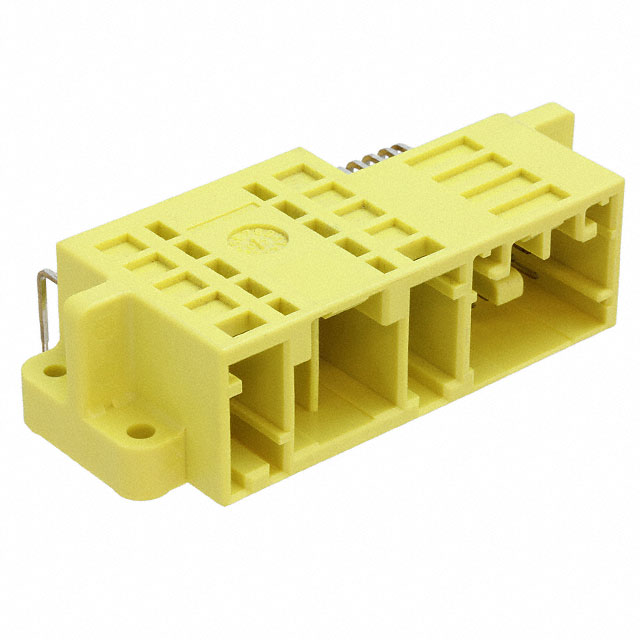

| Part Number | MX26032NP1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN HEADER 32POS R/A 2.2MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22653 pcs | Data sheet | MX26032NP1.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | MX26 | Row Spacing - Mating | - |
| Pitch - Mating | - | Packaging | Tray |
| Overall Contact Length | - | Other Names | 670-2281 |
| Operating Temperature | - | Number of Rows | 2, 3 |
| Number of Positions Loaded | All | Number of Positions | 32 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled | Insulation Height | 0.701" (17.80mm) |
| Insulation Color | Yellow | Ingress Protection | - |
| Features | Mounting Flange | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 32 position | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.126" (3.20mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive |
