MX23A34NF1

JAE Electronics, Inc.

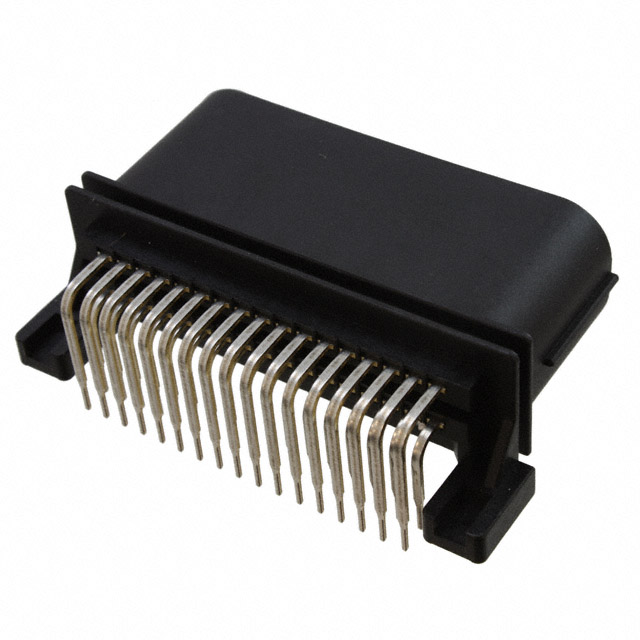

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MX23A34NF1
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN HEADER PIN 34POS RT ANG TIN
Datasheets:	1.MX23A34NF1.pdf 2.MX23A34NF1.pdf 3.MX23A34NF1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8712 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 8712 pcs

Reference Price (In US Dollars)

1 pcs: $3.388

10 pcs: $3.242

120 pcs: $2.727

600 pcs: $2.284

1080 pcs: $2.019

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.388

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MX23A34NF1

Part Number	MX23A34NF1	Manufacturer	JAE Electronics, Inc.
Description	CONN HEADER PIN 34POS RT ANG TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8712 pcs	Data sheet	1.MX23A34NF1.pdf 2.MX23A34NF1.pdf 3.MX23A34NF1.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MX23A	Row Spacing - Mating	0.173" (4.40mm)
Pitch - Mating	0.098" (2.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	670-2465 MX23A34NF1-ND
Operating Temperature	-40°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	34
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.720" (18.30mm)
Insulation Color	Black	Ingress Protection	Waterproof
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 34 position 0.098" (2.50mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.122" (3.10mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
