MX23A12NF1

JAE Electronics, Inc.

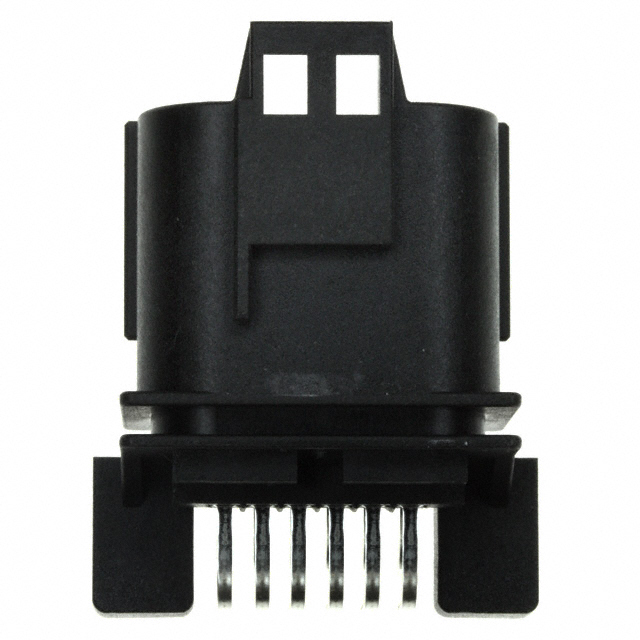

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MX23A12NF1
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN HEADER 12POS R/A MX23A TIN
Datasheets:	1.MX23A12NF1.pdf 2.MX23A12NF1.pdf 3.MX23A12NF1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14209 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14209 pcs

Reference Price (In US Dollars)

1 pcs: $2.175

10 pcs: $2.085

100 pcs: $1.723

500 pcs: $1.451

1000 pcs: $1.269

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.175

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MX23A12NF1

Part Number	MX23A12NF1	Manufacturer	JAE Electronics, Inc.
Description	CONN HEADER 12POS R/A MX23A TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14209 pcs	Data sheet	1.MX23A12NF1.pdf 2.MX23A12NF1.pdf 3.MX23A12NF1.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MX23A	Row Spacing - Mating	0.173" (4.40mm)
Pitch - Mating	0.098" (2.50mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	670-1683
Operating Temperature	-40°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.720" (18.30mm)
Insulation Color	Black	Ingress Protection	Waterproof
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 12 position 0.098" (2.50mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.122" (3.10mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
