KX15-80K3DE

JAE Electronics, Inc.

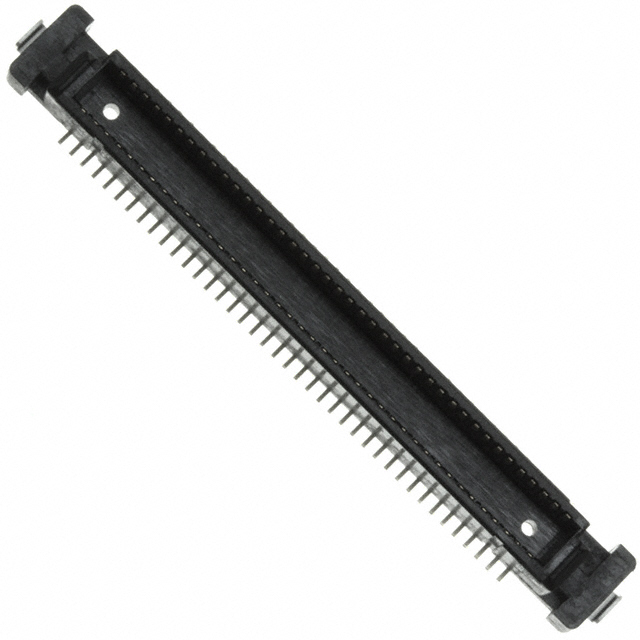

Image may be representation. See specifications for product details.

Product Overview

Part Number:	KX15-80K3DE
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN PLUG 0.8MM 80POS SMD GOLD
Datasheets:	1.KX15-80K3DE.pdf 2.KX15-80K3DE.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13222 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13222 pcs

Reference Price (In US Dollars)

1 pcs: $2.261

10 pcs: $2.169

25 pcs: $1.98

50 pcs: $1.886

100 pcs: $1.791

250 pcs: $1.603

500 pcs: $1.509

1000 pcs: $1.32

2500 pcs: $1.254

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.261

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of KX15-80K3DE

Part Number	KX15-80K3DE	Manufacturer	JAE Electronics, Inc.
Description	CONN PLUG 0.8MM 80POS SMD GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13222 pcs	Data sheet	1.KX15-80K3DE.pdf 2.KX15-80K3DE.pdf
Series	KX15	Pitch	0.031" (0.80mm)
Packaging	Tray	Other Names	670-1346 KX1580K3DE
Number of Rows	2	Number of Positions	80
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	5mm, 8mm, 11mm, 14mm, 17mm	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.187" (4.75mm)
Features	Board Guide, Solder Retention	Detailed Description	80 Position Connector Plug, Center Strip Contacts Surface Mount Gold
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector Type	Plug, Center Strip Contacts
