JAE Electronics, Inc.

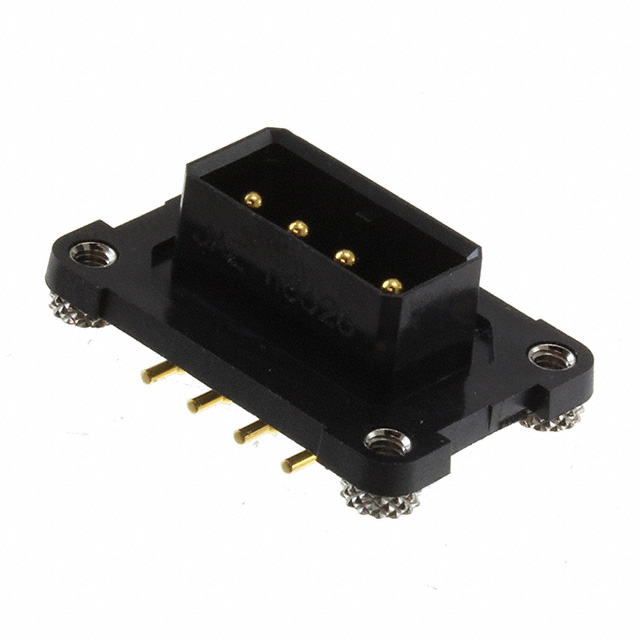

| Part Number | JN4AT04NJ1-R | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | JN4 SERIES | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 5201 pcs | Data sheet | |
| Voltage Rating | 200VAC | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | JN4 | Row Spacing - Mating | - |
| RoHS Status | RoHS Compliant | Pitch - Mating | 0.126" (3.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 670-3067 | Operating Temperature | -20°C ~ 130°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Insulation Material | Synthetic Resin | Insulation Height | 0.343" (8.71mm) |
| Insulation Color | - | Ingress Protection | - |
| Features | Mounting Flange, Waterproof | Fastening Type | Threaded |
| Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.126" (3.20mm) | Current Rating | 7A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Industrial |
